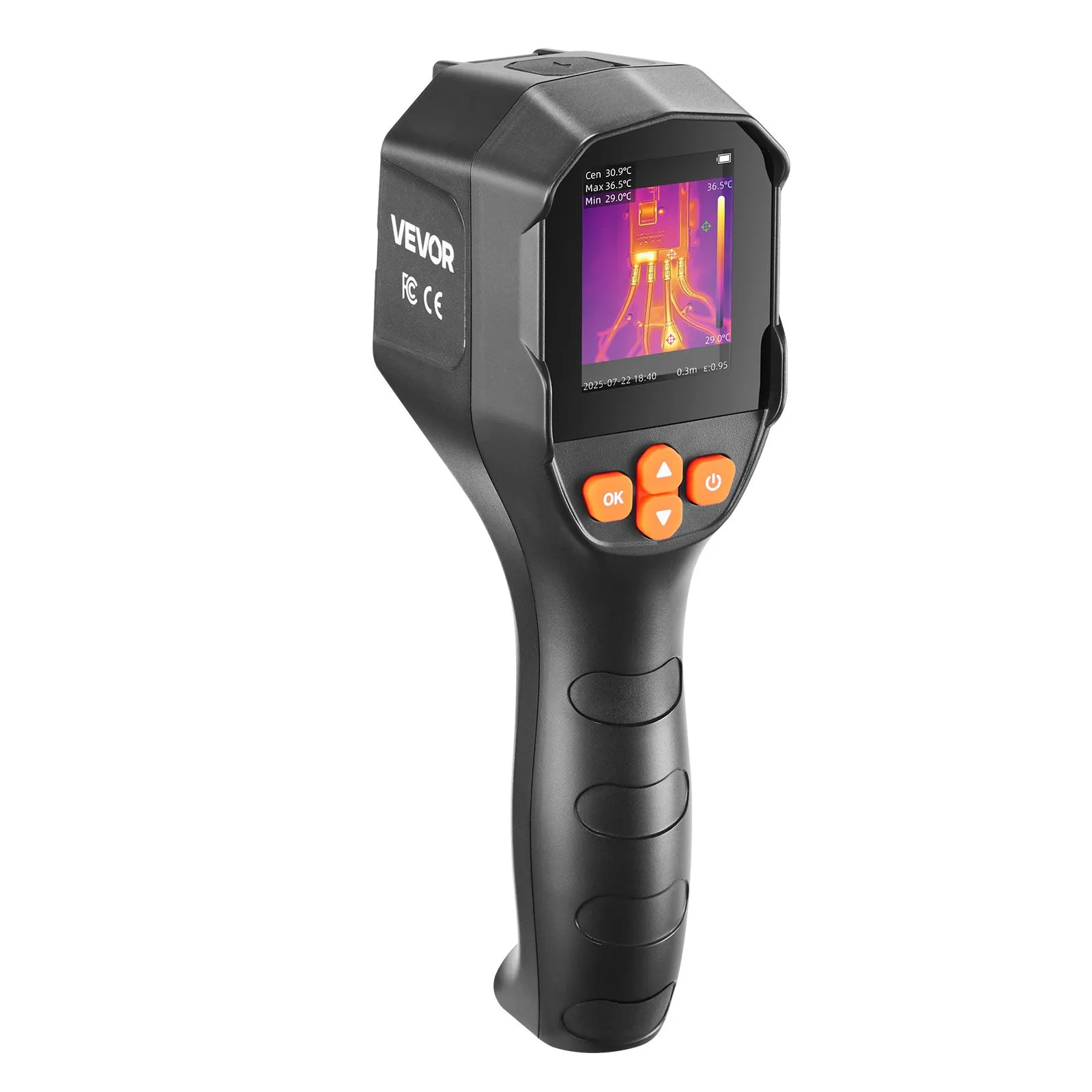

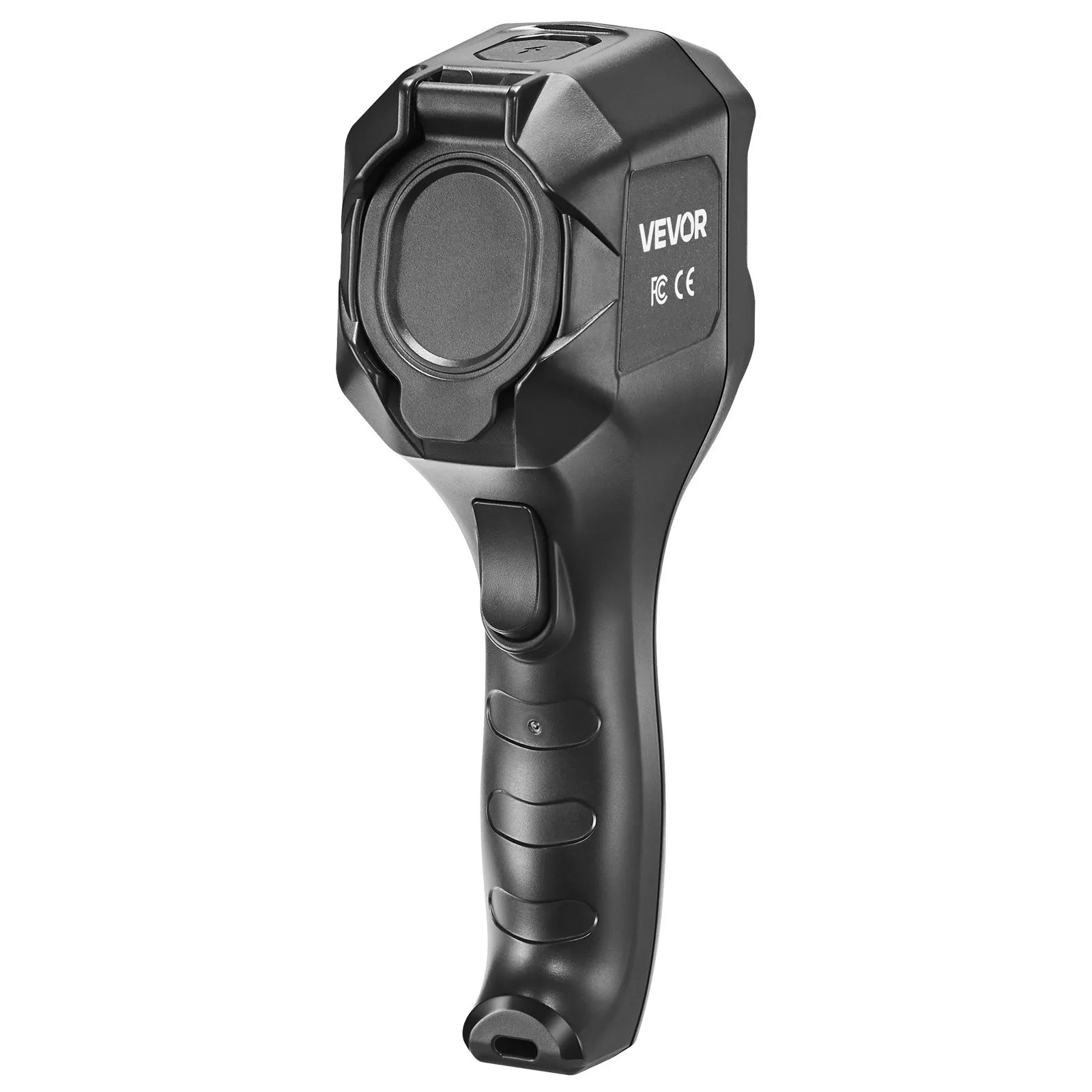

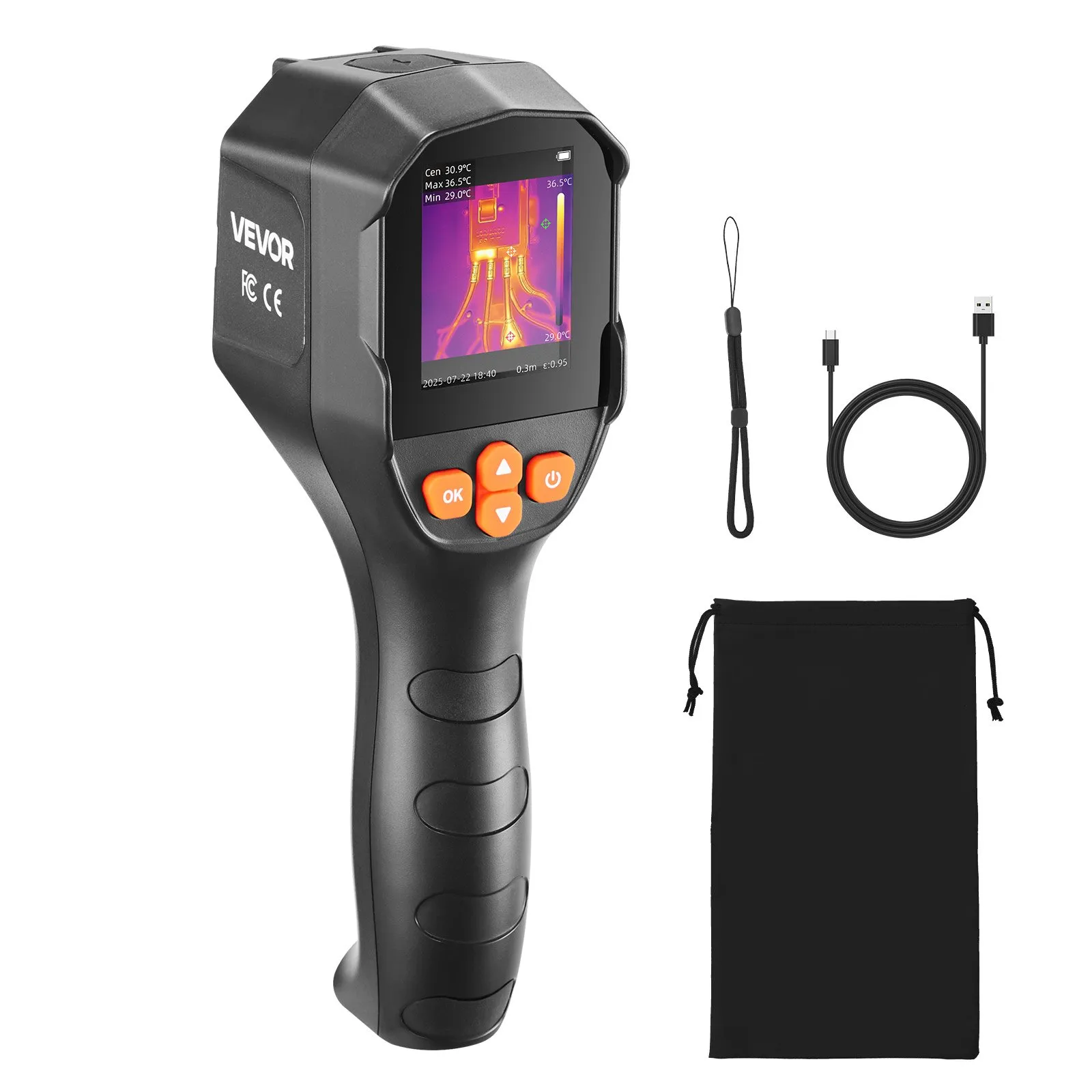

VEVOR YXI96 Pro Thermal Camera, TISR Super Resolution 240×180, Thermal Imaging Camera with 2MP Visual Camera, 96×96 IR Resolution, 25HZ Refresh Rate, -4°F to 1022°F, 4 Image Modes & 6 Color Palettes
Product Features:

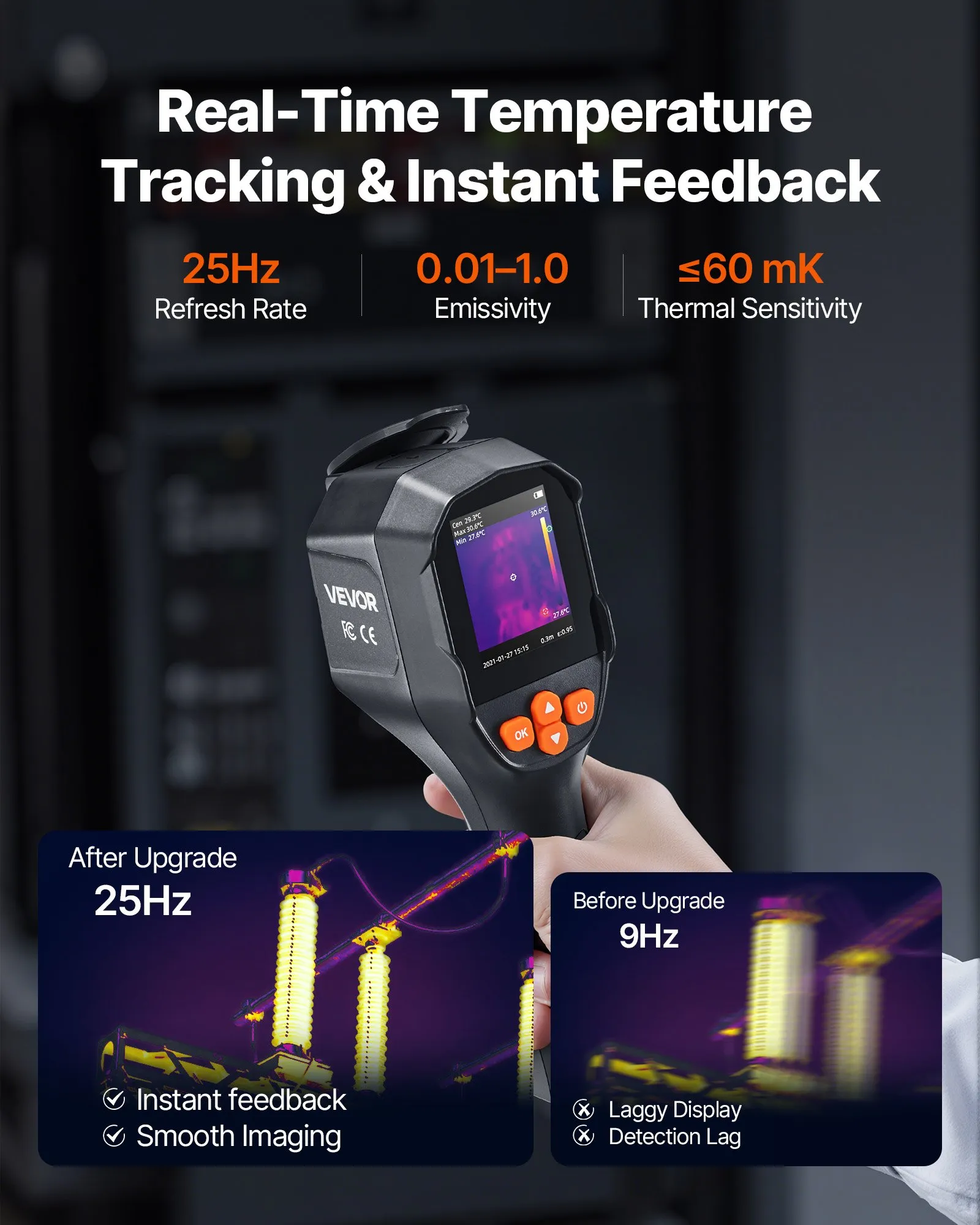

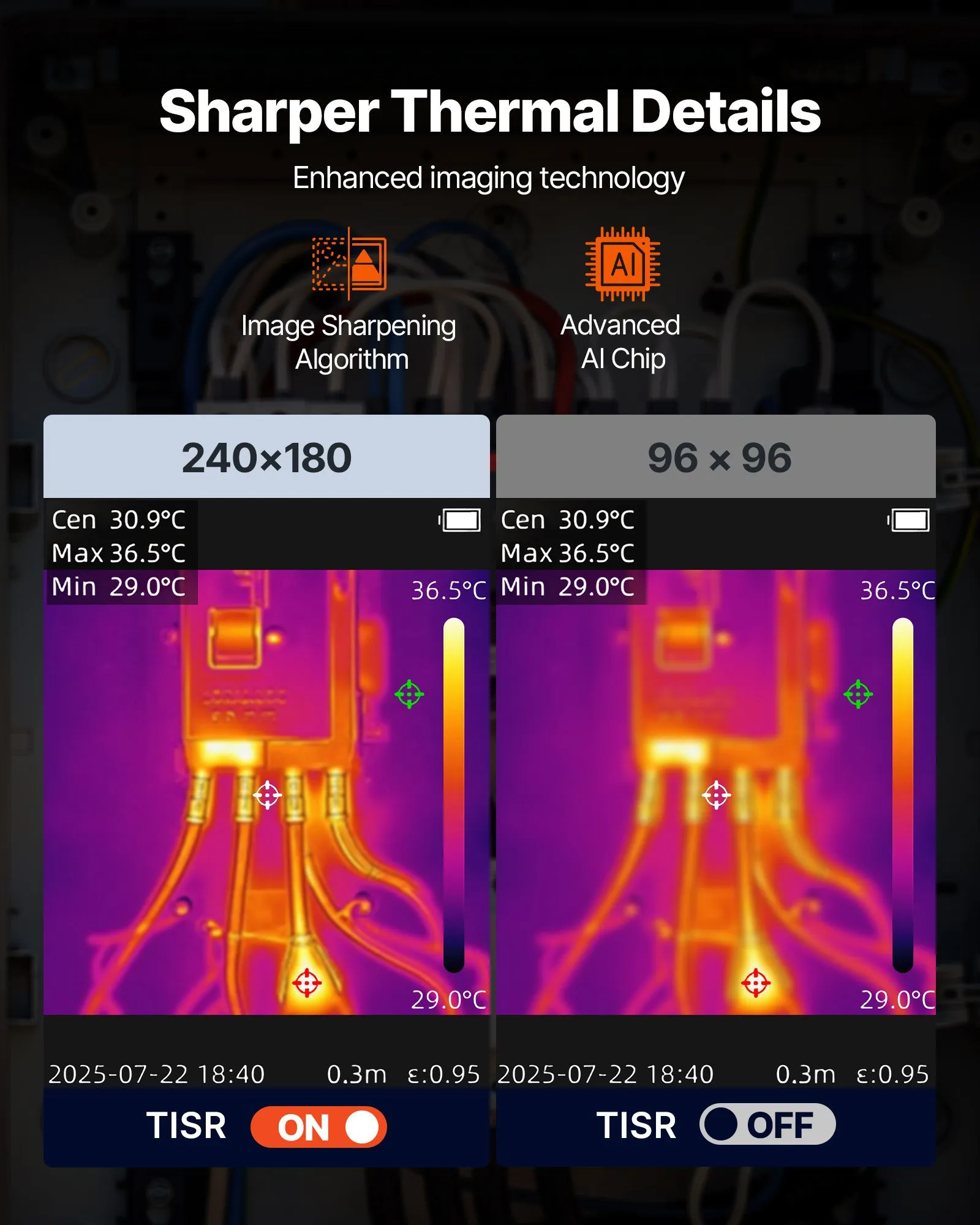

Image Enhancement Technology: The VEVOR thermal imager adopts TISR enhancement technology, upgrading the original IR resolution of 96×96 to a super resolution of 240×180. With a 25Hz refresh rate, ≤60 mK thermal sensitivity, and a wide 50.0°(H)x50°(V) /72.1°(D) field of view, combined with image sharpening algorithms and a high-performance AI chip, its 2.4-inch LCD screen captures and displays heat details with greater clarity.

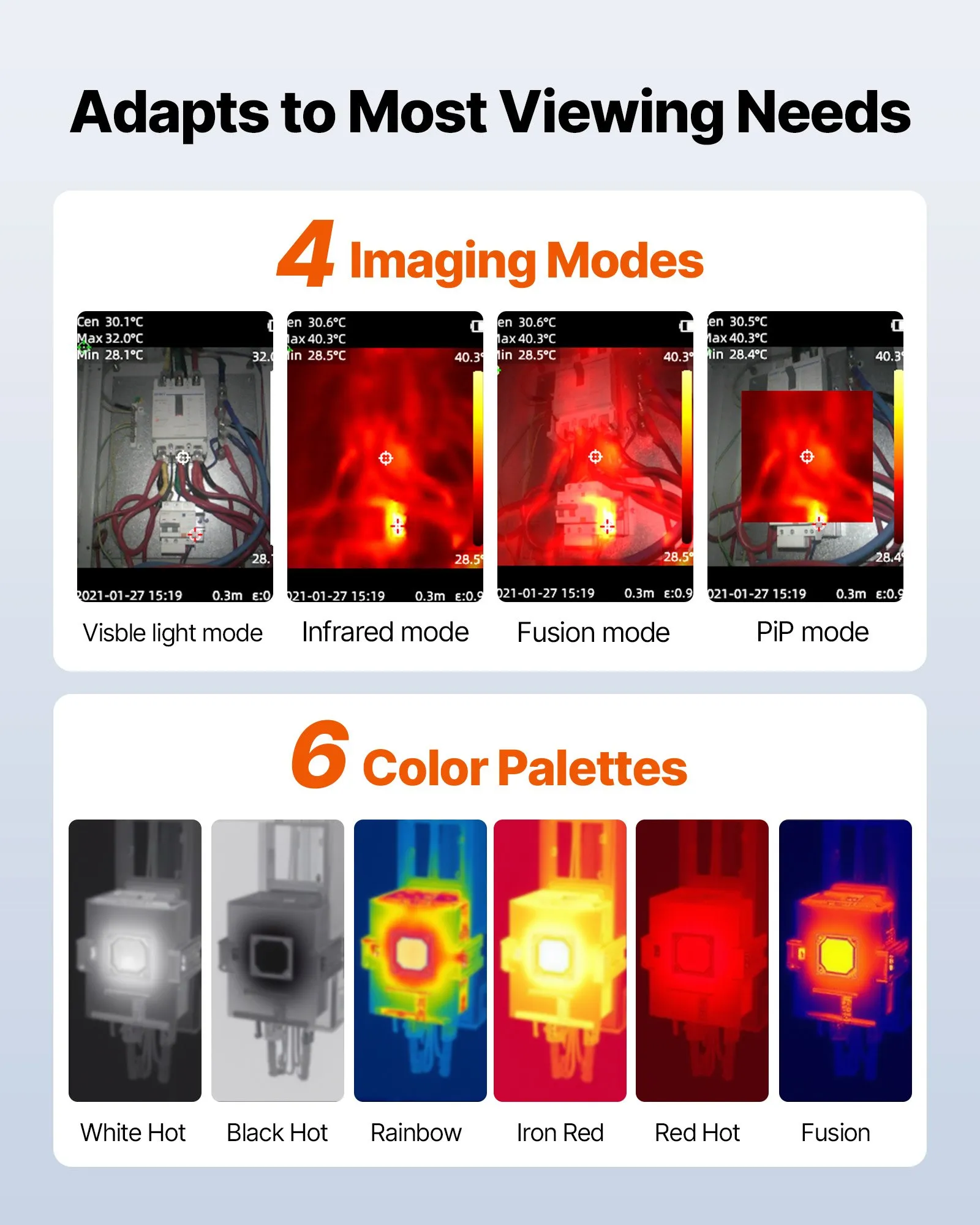

Accurate Temperature Measurement: This infrared camera supports a wide temperature range of -20℃ to 550℃ / -4°F to 1022°F. It automatically tracks hot and cold spots and displays center, maximum, and minimum temperature data. With 4 thermal color modes and 6 palette options, it adapts to different working needs, delivering more intuitive and clearer imaging.

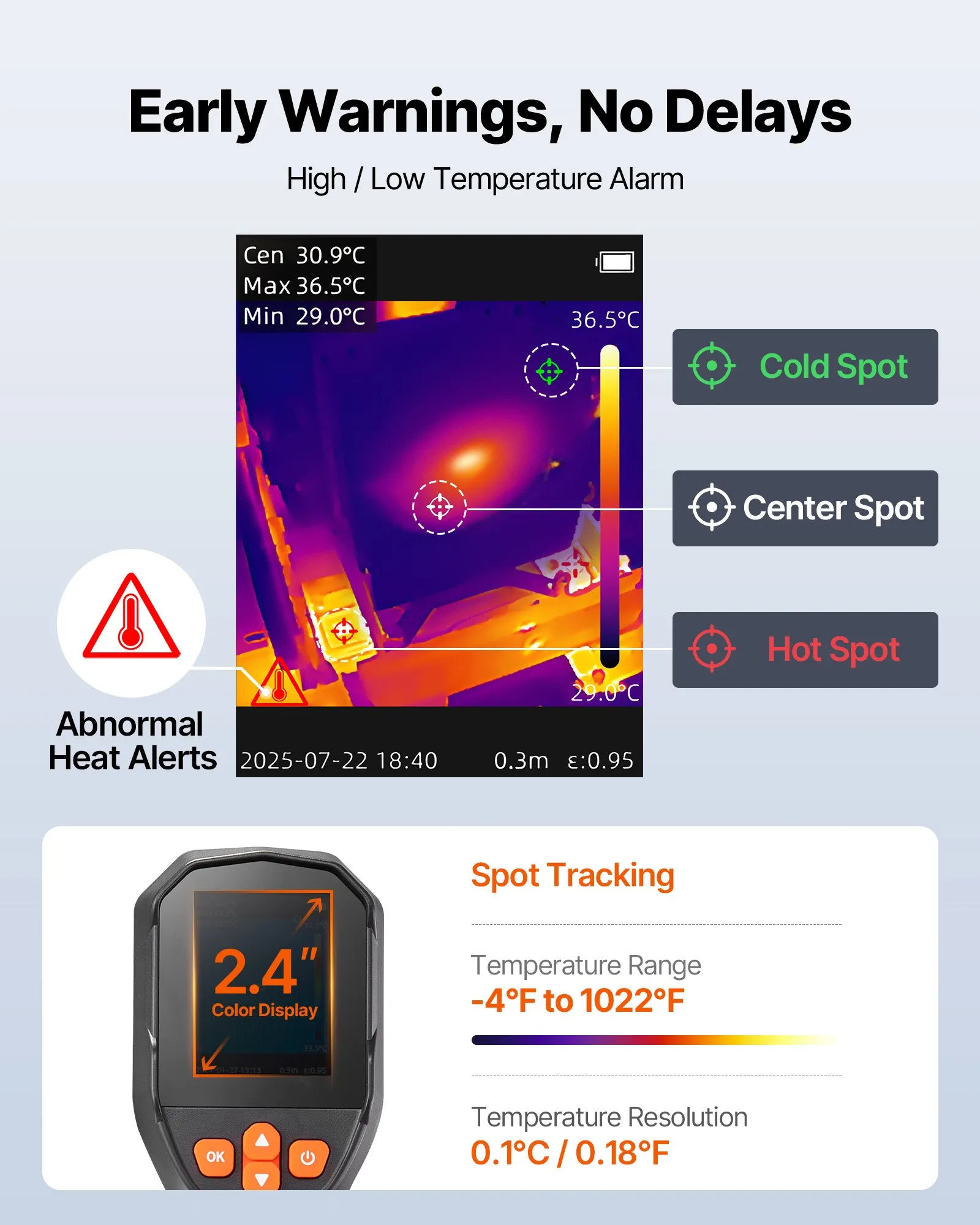

Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts instantly. It helps you quickly identify overheating or low-temperature zones, precisely locate faults, and detect hidden heat risks, making potential problems clearly visible for early action.

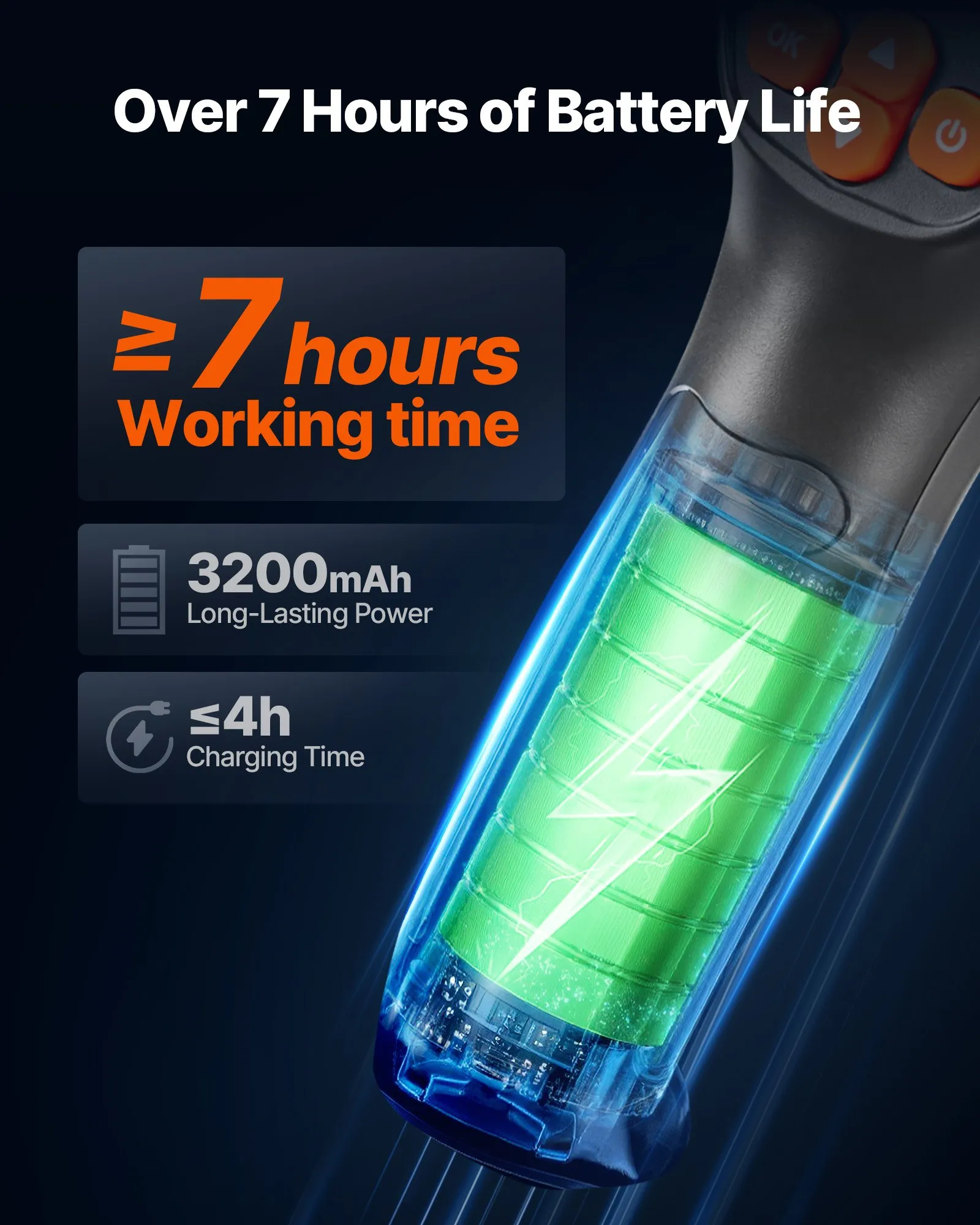

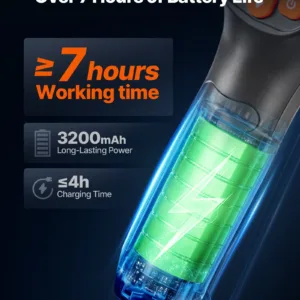

Multiple Upgrades: This thermal camera is equipped with a 3200mAh high-capacity battery that provides up to 7 hours of runtime. It supports auto power-off, photo and video recording, and LED lighting. The lightweight yet sturdy body withstands drops up to 1.5m and, with IP54 dust- and water-resistant protection, is ready for challenging environments.

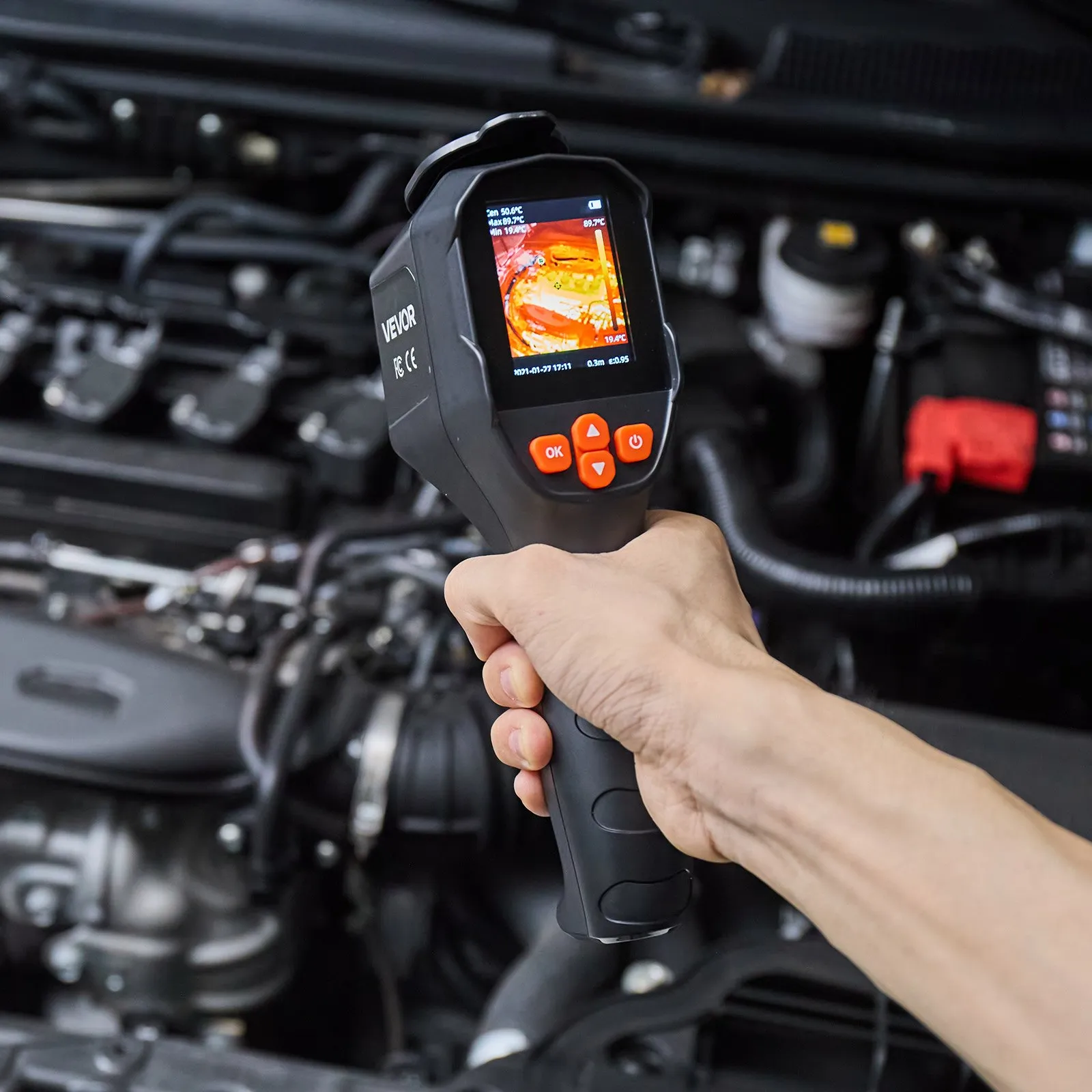

Wide Applications: Our thermal imaging camera supports USB charging for convenience and comes with 8GB built-in storage, capable of saving over 30,000 images. It supports 10 language settings and is widely applicable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection.
Specification
Item Model Number
YXI96 Pro
Infrared Resolution
96 x 96 pixels
Enhanced Resolution
240 x180 pixels
Display Size
2.4 inch
Refresh Rate
25Hz
Thermal Sensitivity
≤ 60 mK
Focus Mode
Fixed Focus
Visible Light Resolution
1600 × 1200 pixels (2MP)
Emissivity
0.01 – 1.0
Measuring Distance
0.3 – 3 m
Temperature Measurement Range
-4℉ to 1022℉ / -20℃ to 550℃
Temperature Resolution
0.1°C
Temperature Accuracy
±2°C
Temperature Display
Center / Hot / Cold Spot
Battery Capacity
3200 mAh
Internal Storage
8 GB
Drop Resistance
1.5 m Drop Resistance
Waterproof Rating
IP54
Language Options
10 Languages
Operating Temperature
14℉ to 122℉ / -10℃ to 50℃
Storage Temperature
-4℉ to 140℉ / -20℃ to 60℃
Tripod Support
Supported (Standard 1/4-inch Thread)
Net Weight
0.8 lbs / 0.38 kg
