VEVOR TL-A5121 10000PSI Air Hydraulic Pump 0.61 Gal

VEVOR TL-A5121 10000PSI Air Hydraulic Pump 0.61 Gal Reservoir, NPT 3/8 In Oil Outlet, NPT 1/4 In Inlet, Plastic Air Hydraulic Pump with Remote Control Actuator, for Automobile Frame Machine & Hydraulic Press

Product Features:

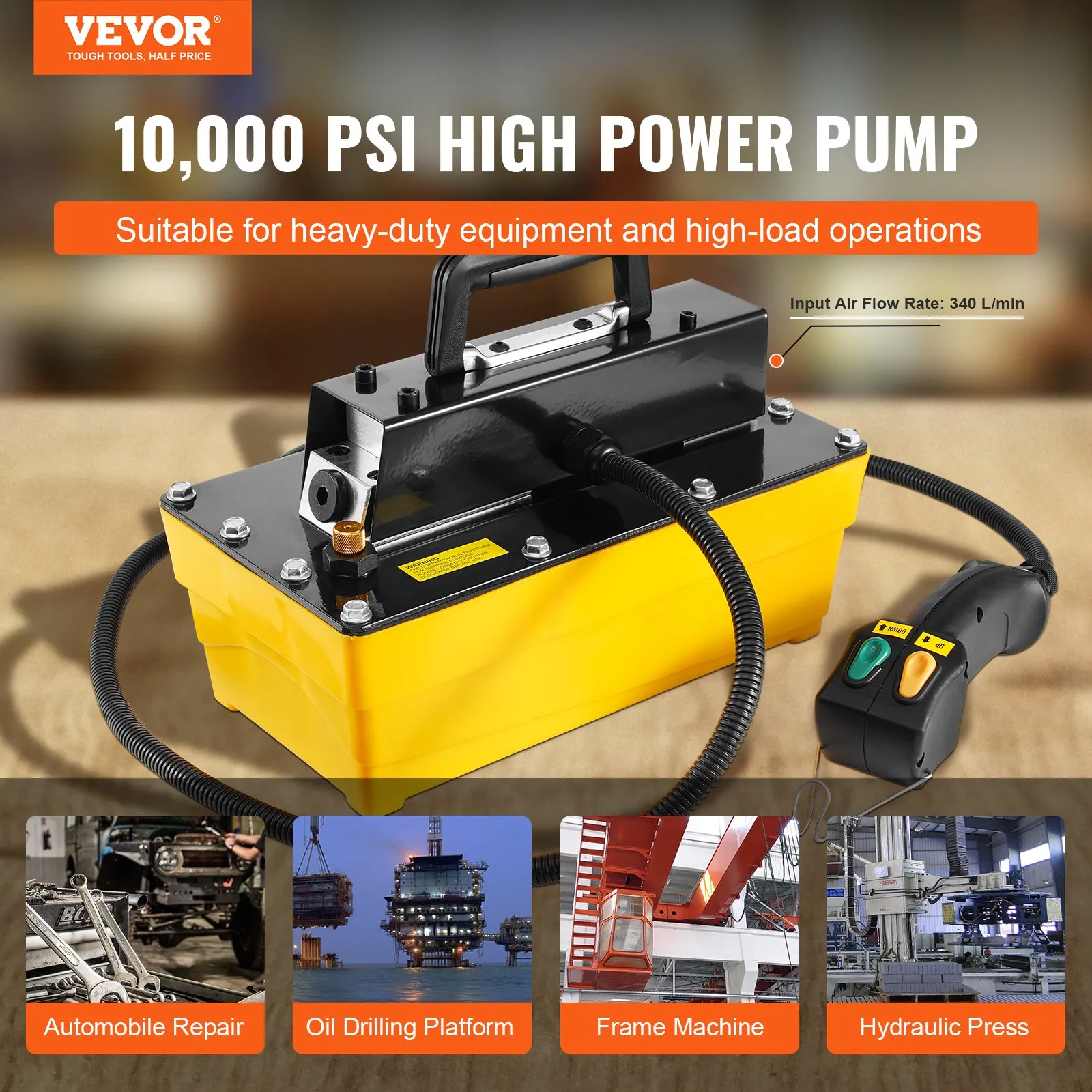

10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

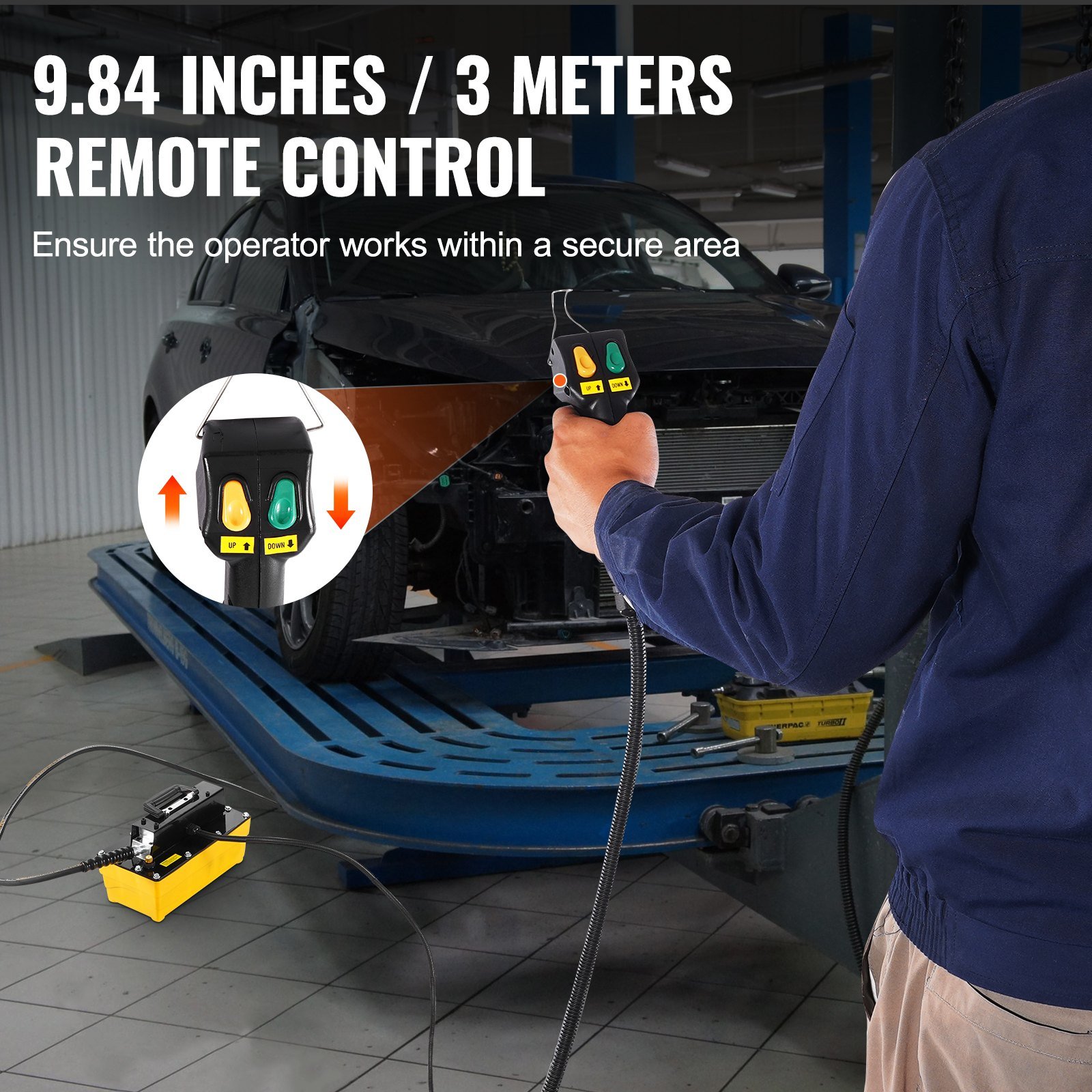

3-Meter Remote Control: Enjoy the convenience of a 9.84 in / 3 m remote that keeps you secure from hazards. This feature makes operating more accessible and comfortable while allowing quick reactions in emergencies to help avoid accidents.

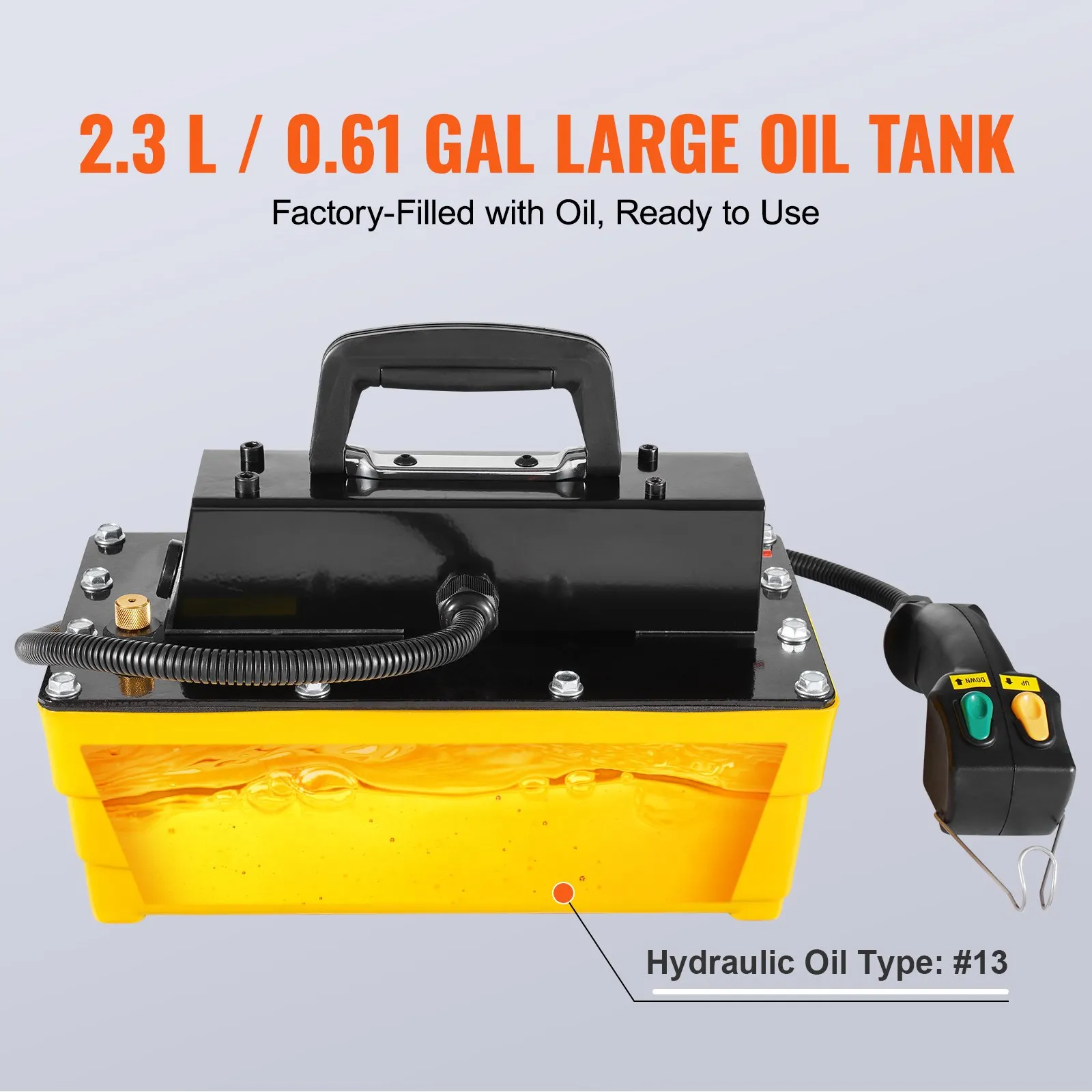

Factory-Filled with Oil: This air over hydraulic pump comes with a large 2.3 L / 0.61 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

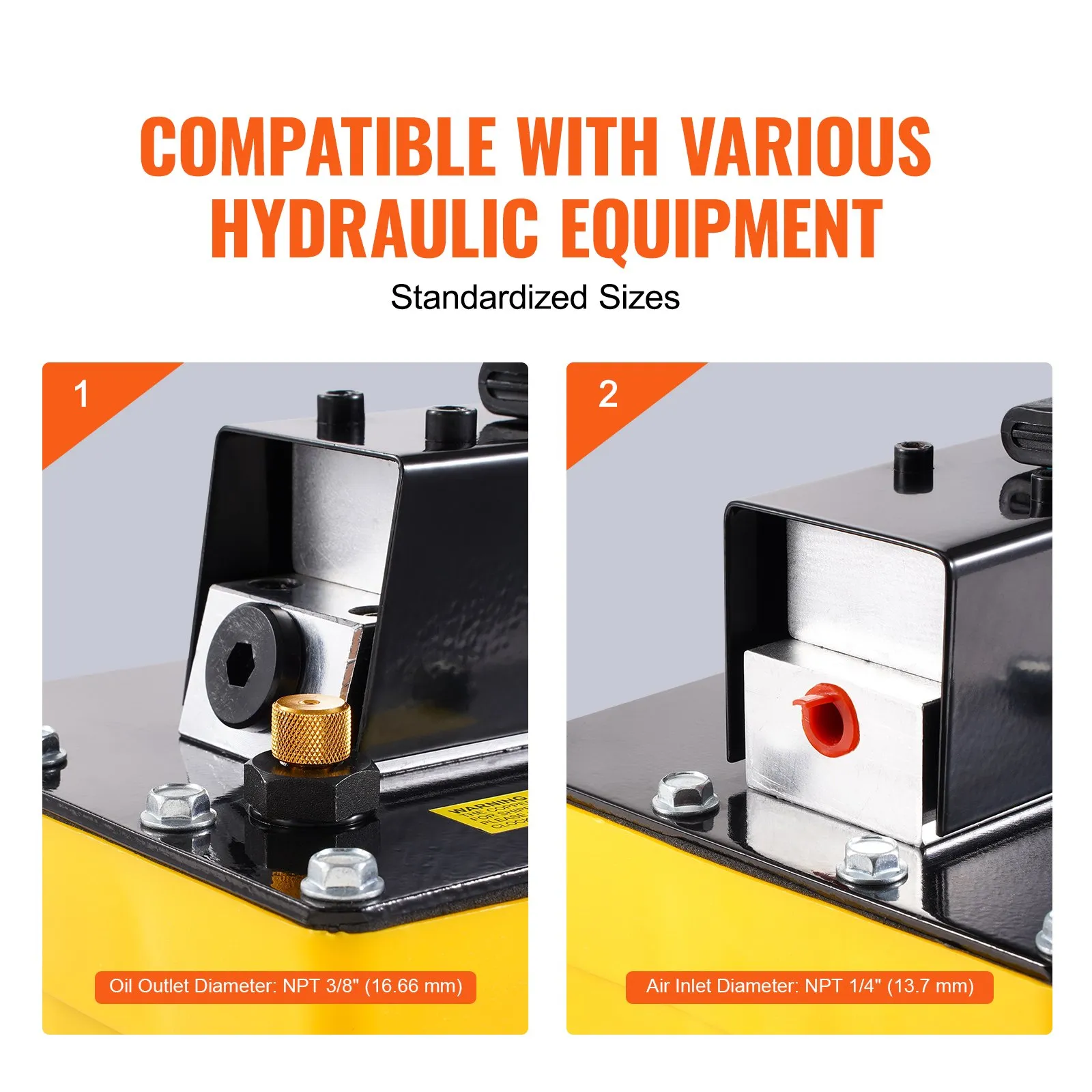

Standard Size for Easy Setup: With an air inlet of NPT 1/4 in and a high-pressure output of NPT 3/8 in, this air hydraulic pump is compatible with standard pneumatic accessories. It easily connects to your existing pneumatic system for hassle-free integration.

Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure

Specifications

Item Model Number
TL-A5121

Input Air Pressure
110 PSI – 145 PSI

Maximum Output Pressure
10,000 PSI

Oil Tank Available Capacity
2.3 L / 0.61 Gal

Air Flow Rate
340 L/min

Hydraulic Pump Flow Rate
0.8 L/min (No Load) / 0.16 L/min (Load)

Air Inlet Diameter
NPT 1/4″ (13.7 mm)

Oil Outlet Diameter
NPT 3/8″ (16.66 mm)

Net Weight
18.74 lbs / 8.5 kg

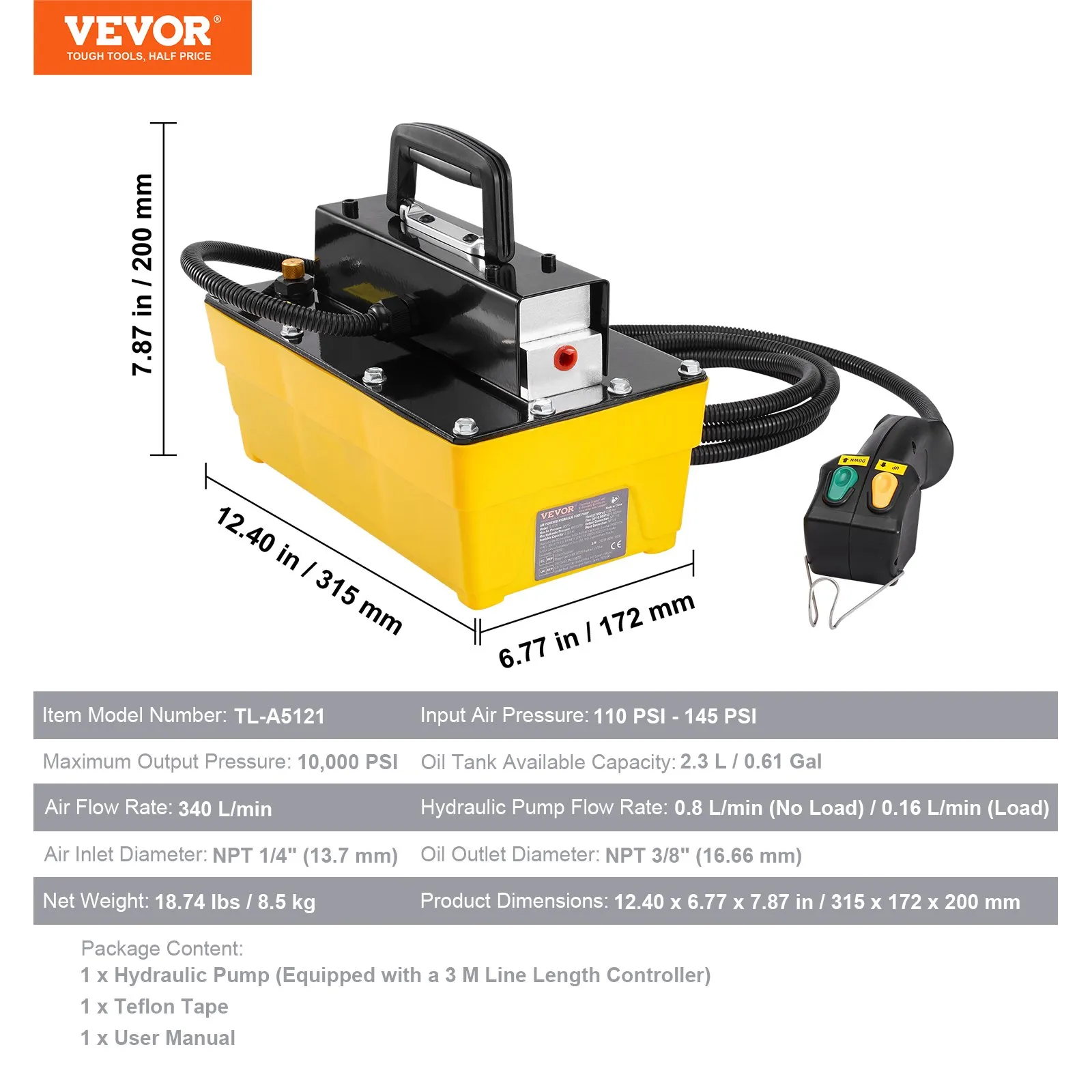

Product Dimensions
12.40 x 6.77 x 7.87 in / 315 x 172 x 200 mm
