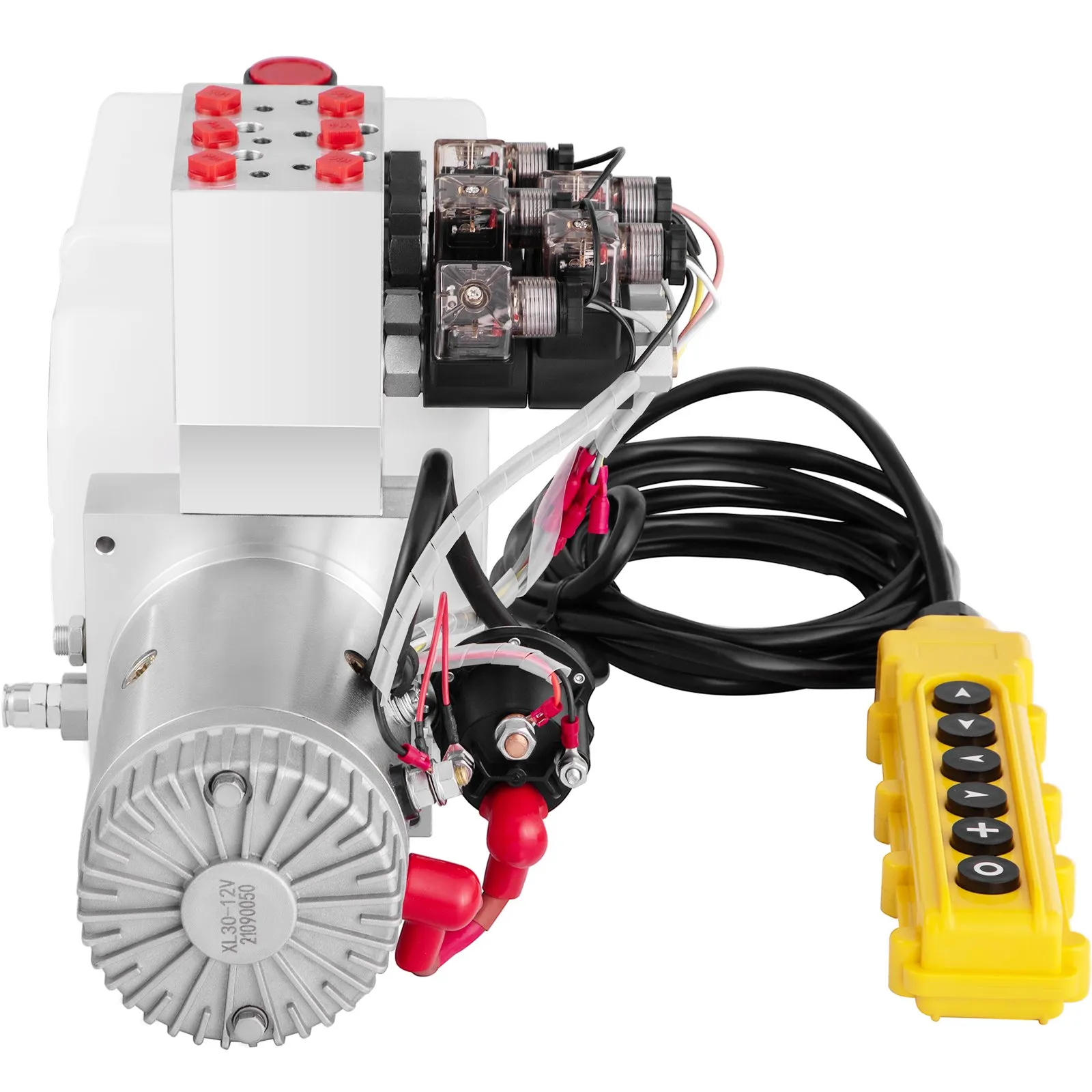

VEVOR Hydraulic Pump, 6 Quart/1.5 Gal Dump Trailer Pump

VEVOR Hydraulic Pump, 6 Quart/1.5 Gal Double Acting Dump Trailer Pump DC 12V, 3200 PSI Max Relief Pressure, Electric Hydraulic Power Unit for Dump Trailer Car Lifting (with 6pcs SAE #6 Connectors)

Product Features:

Hydraulic Pump Specifications: 12V, 1.6kW DC motor for quick startup and oil output. 6-quart oil tank with pressure up to 16-20 MPa, max release pressure of 22 MPa (3200 psi), and a flow rate of 0.91 GPM for powerful hydraulic performance.

Dual-Action Power Unit: The hydraulic power unit features a dual-action power unit for stable, reliable lifting, with a built-in security relief valve that automatically releases pressure to reduce failure rates and improve operational security.

6-Way Solenoid Valve: Controls up to 3 hydraulic cylinders, paired with a 6-direction remote control for precise control in multiple directions, allowing you to work more efficiently and accurately.

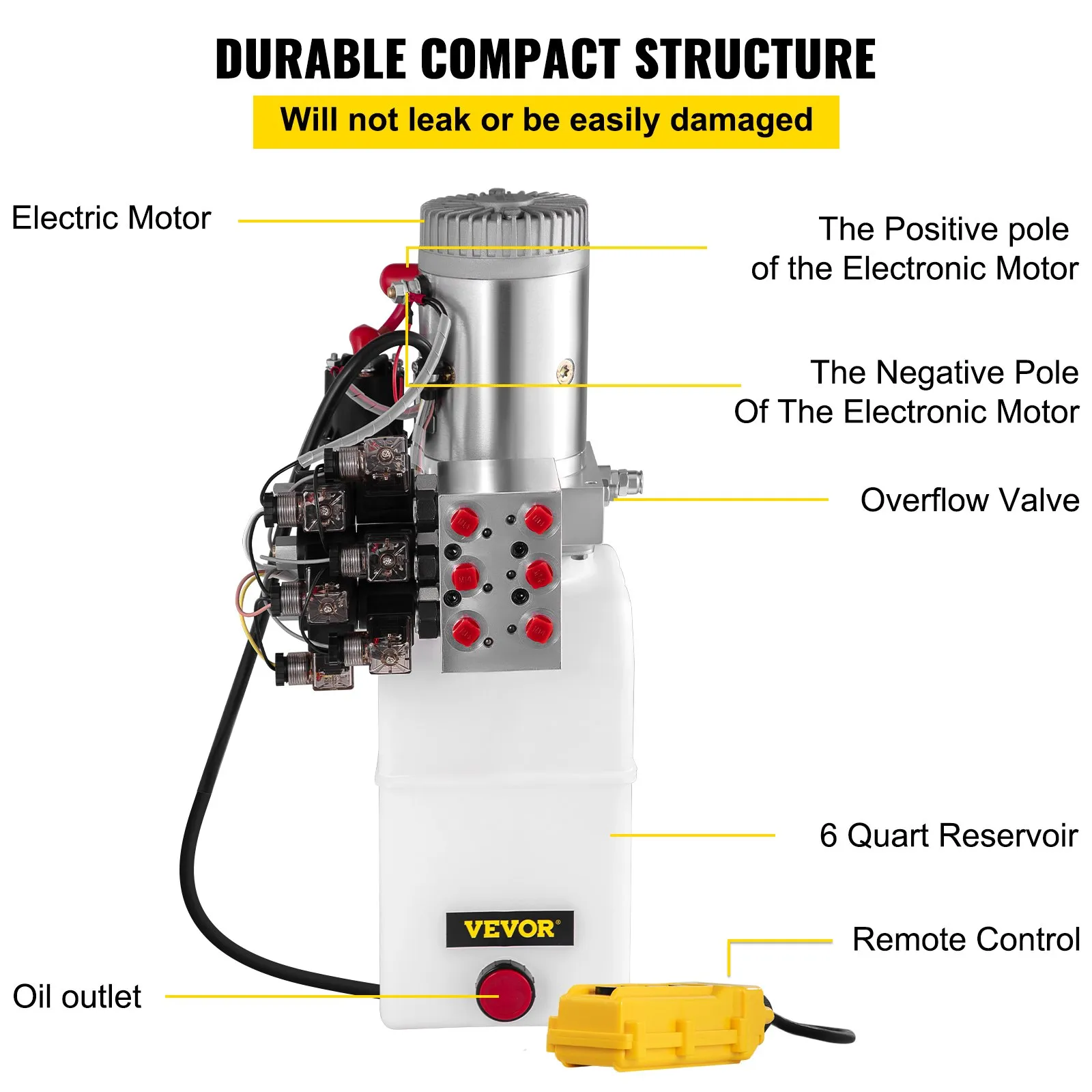

Durable Oil Tank: The hydraulic pump for dump trailer features strong sealing to avoid oil leaks. The tank is made of sturdy plastic, designed to withstand impact and daily use without damage, ensuring long-lasting durability.

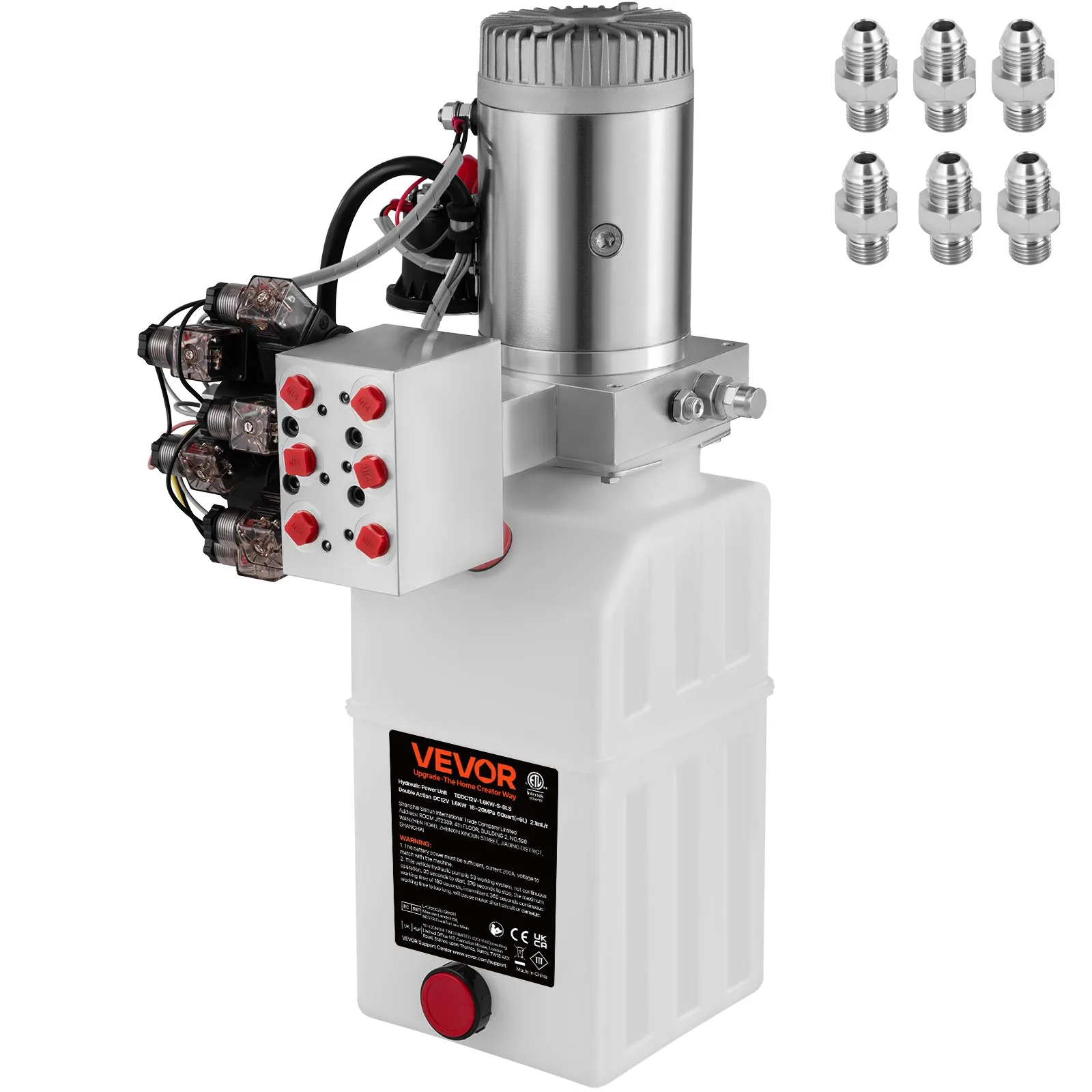

Versatile Application: This hydraulic pump comes with a battery label sticker and six SAE#6 connectors, allowing easy installation on small to medium hydraulic equipment like small excavators, dump trailers, and agricultural dump trucks.

Specification

Item Model Number
TDDC12V-1.6KW-S-6LS

Net Weight
35.1 lbs/16 kg (Include all accessories)

Product Dimensions
21.9 x 8.9 x 9.1 in/555 x 225 x 230 mm

Voltage
DC12V

Reservoir Capacity
6 Quart / 1.5 Gal

Power
1.6kW

Traffic
2.1 mL/r

Flow Rate
0.91GPM (3.4L/min)

Speed
2600 r/min

Function
Double Acting
