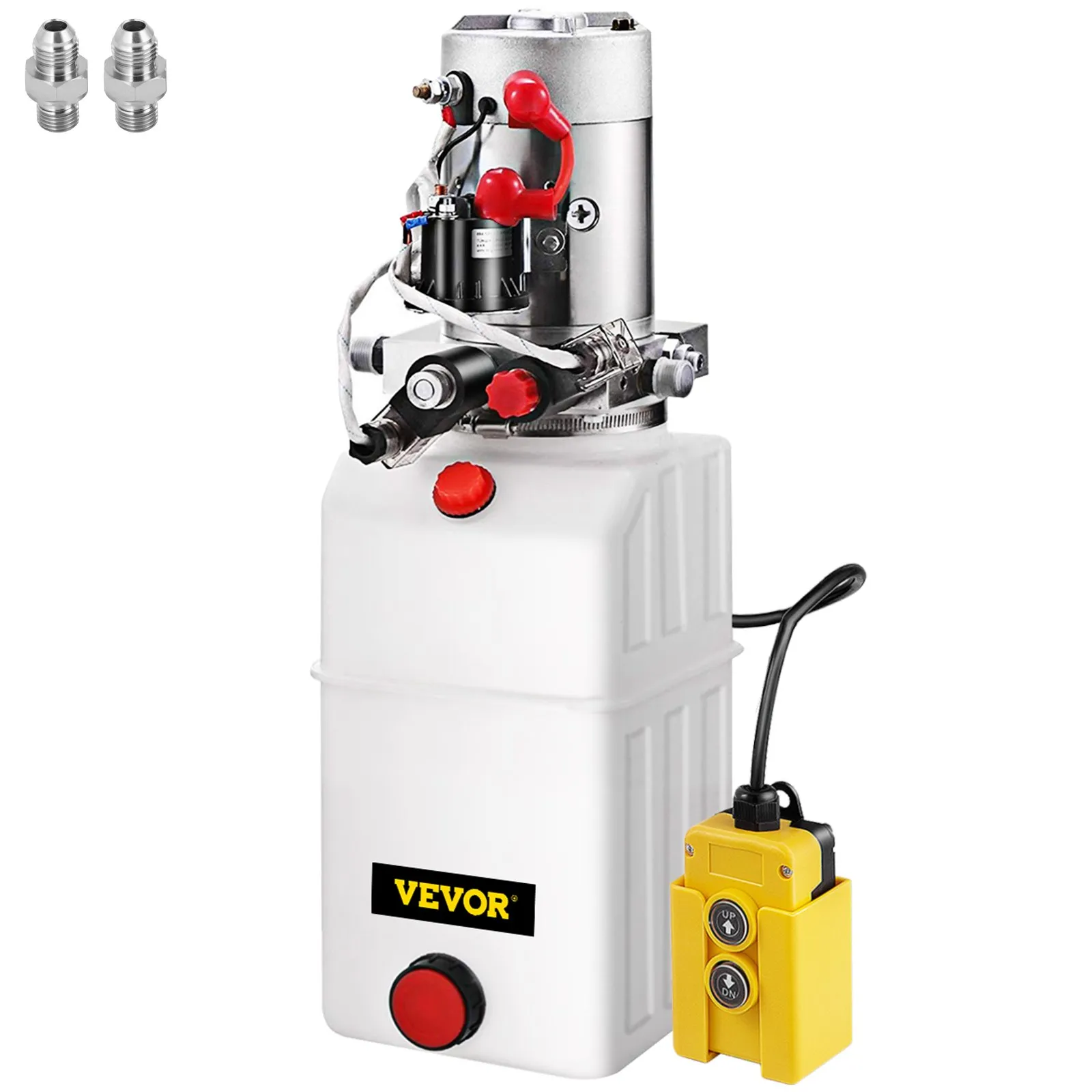

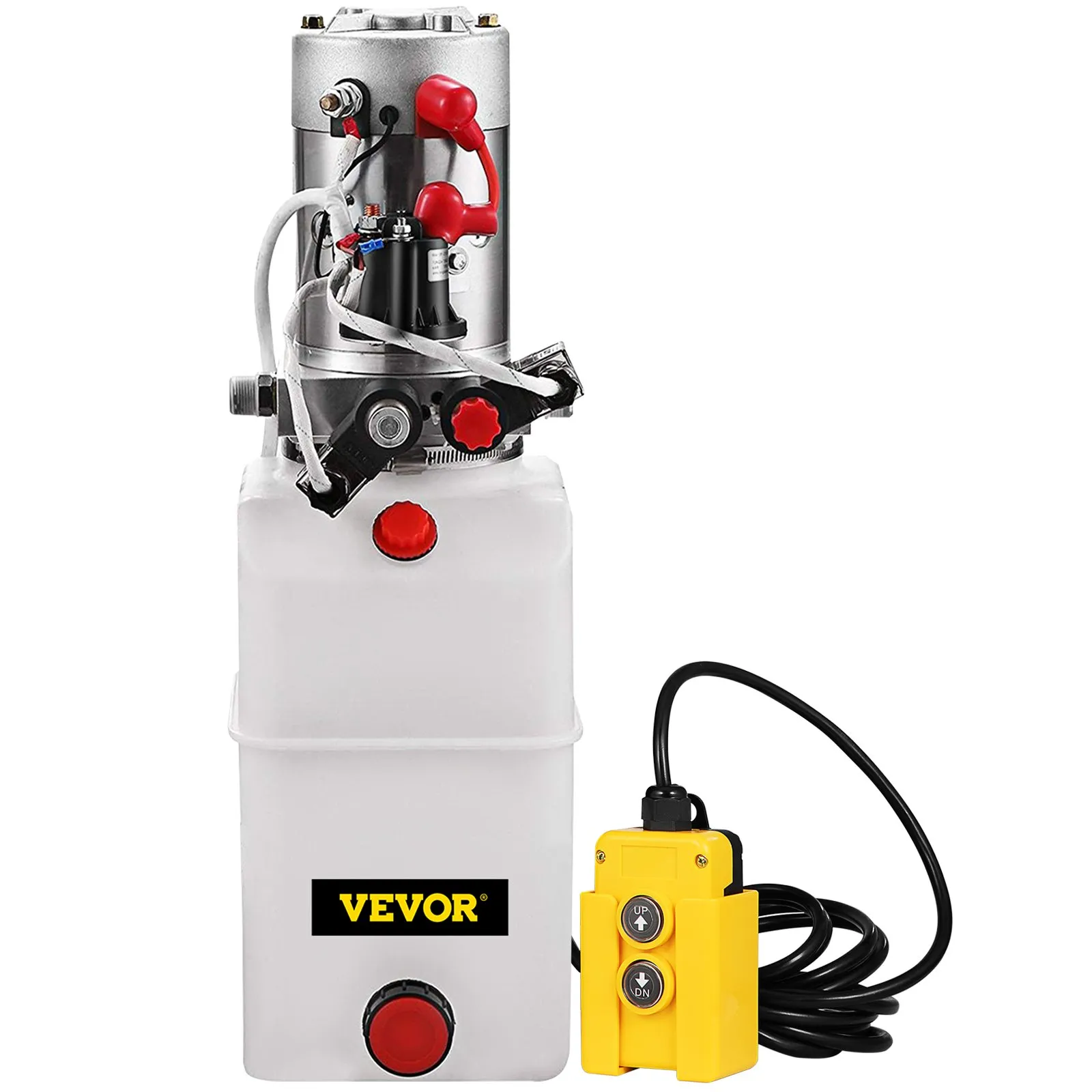

VEVOR Hydraulic Power Unit 6 Quart Hydraulic Pump

VEVOR Hydraulic Power Unit 6 Quart Hydraulic Pump Double Acting DC12V Hydraulic Power Pack for Dump Truck Dump Trailer SAE6 Port with Plastic Reservoir

Product Features:

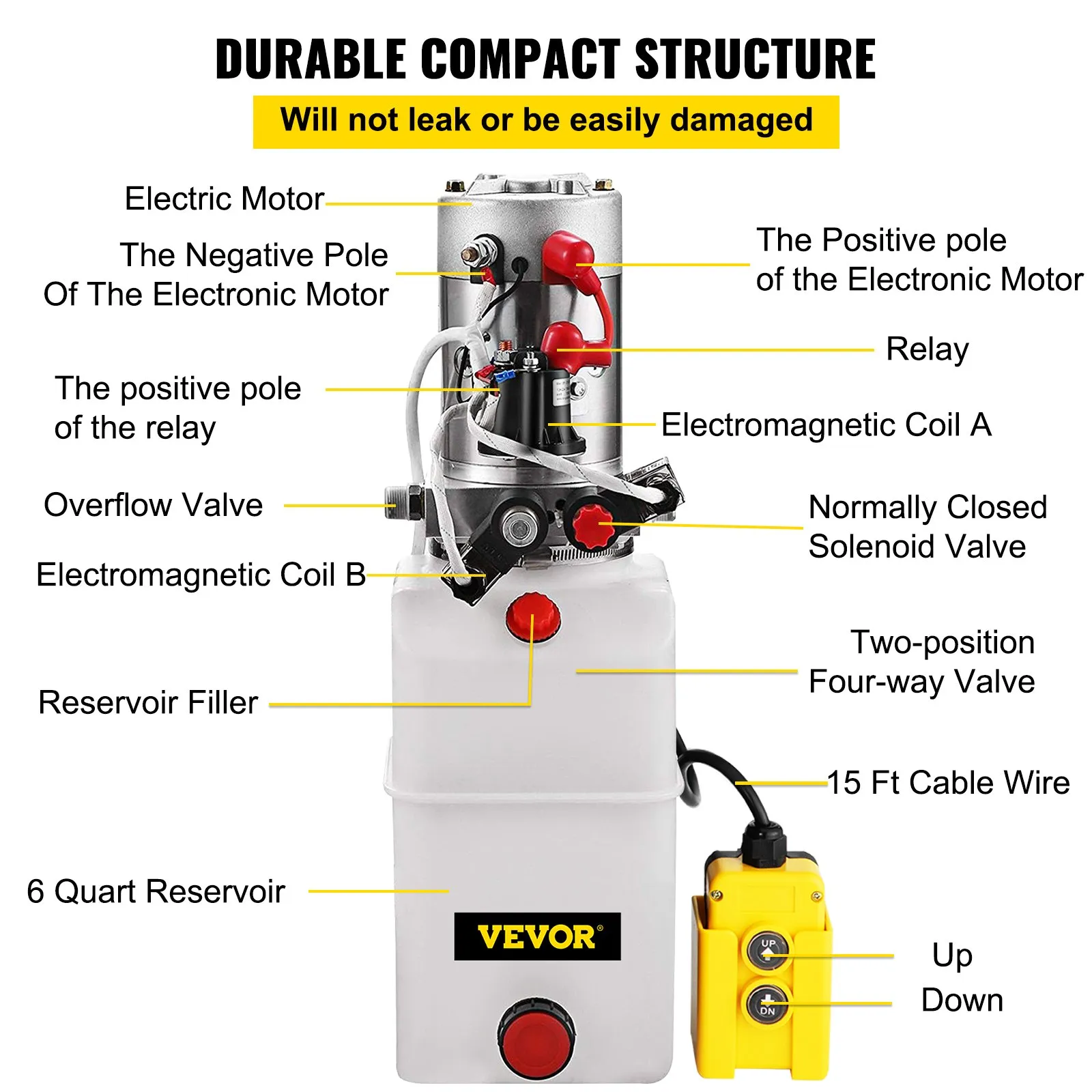

Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 6-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.

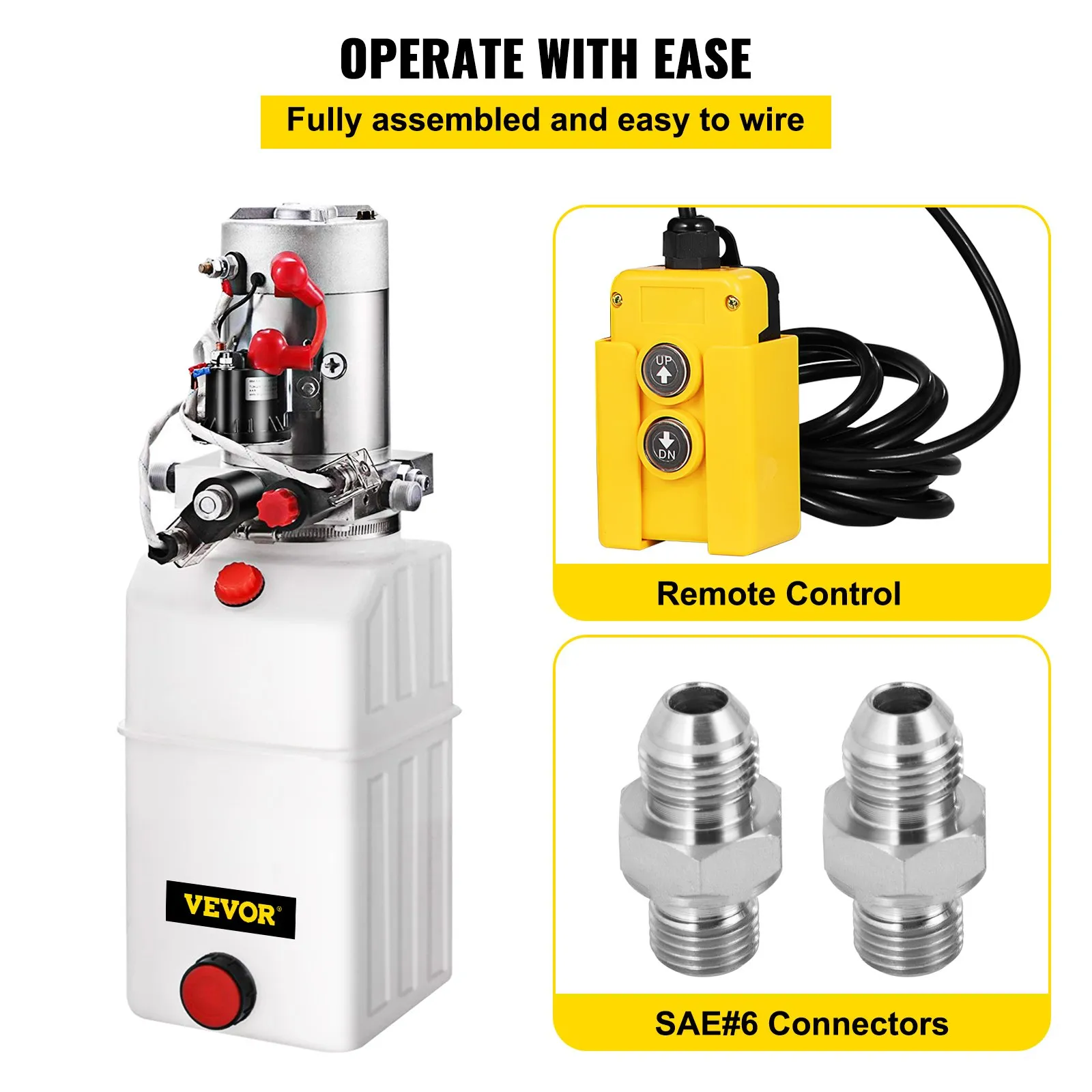

Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.

Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.

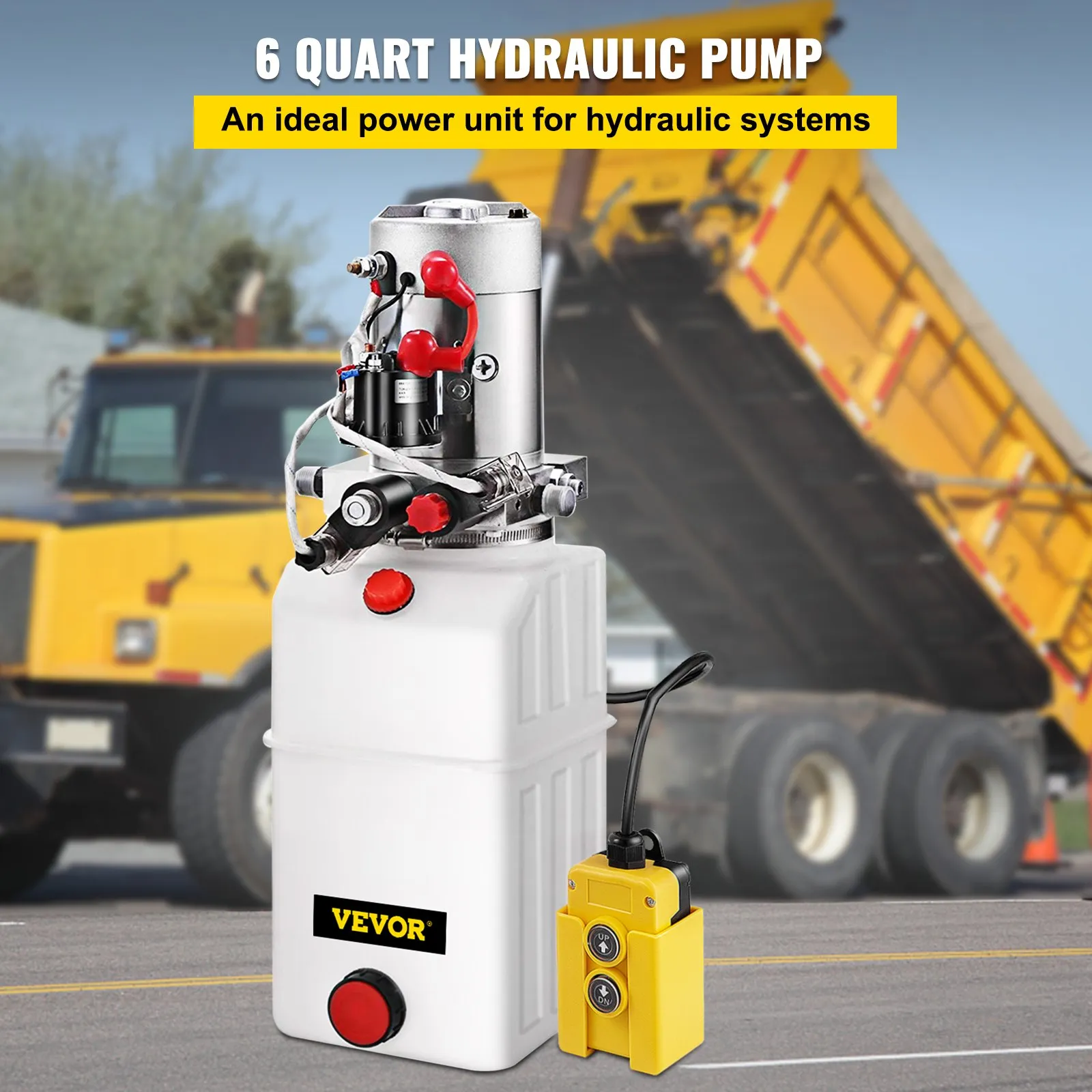

Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

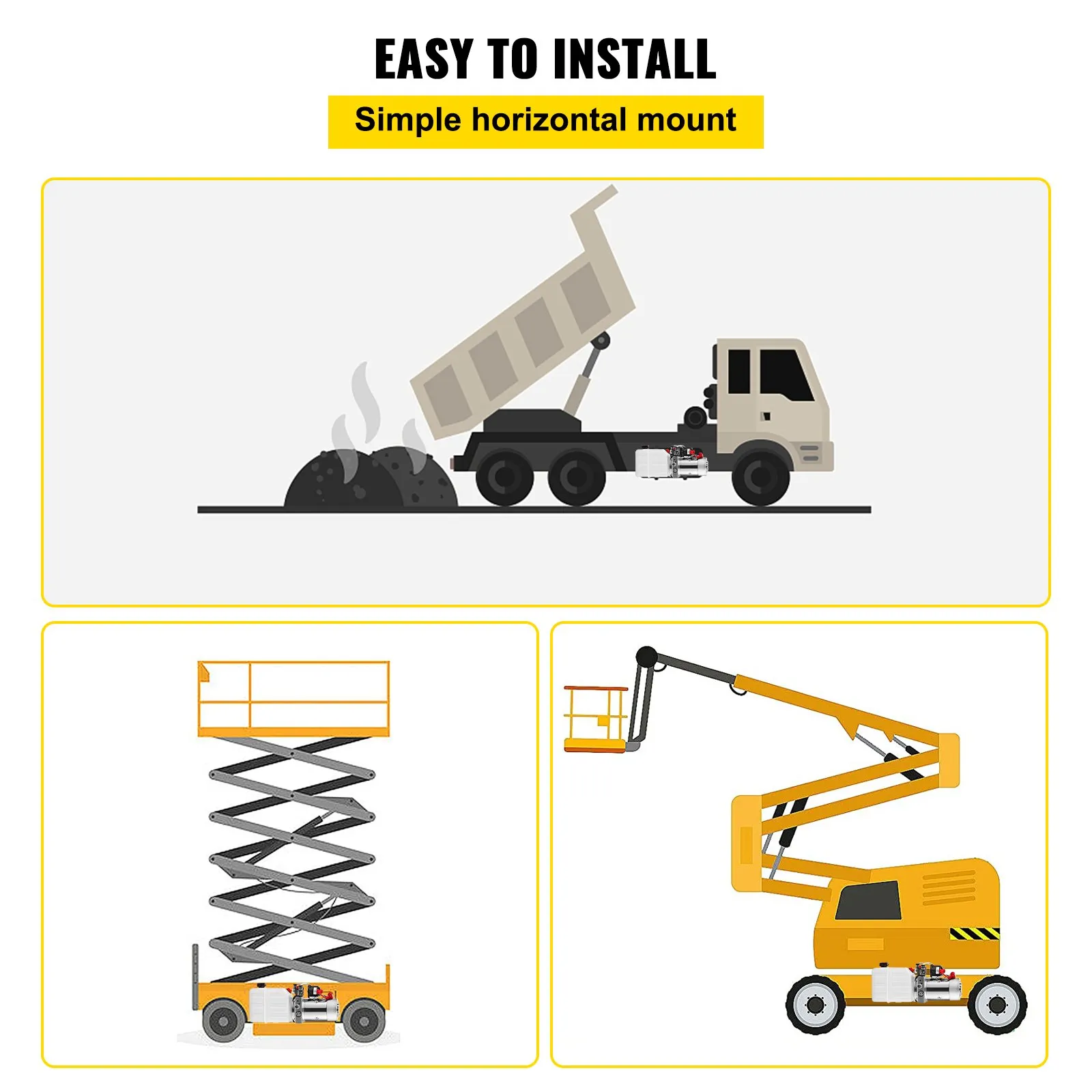

Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.

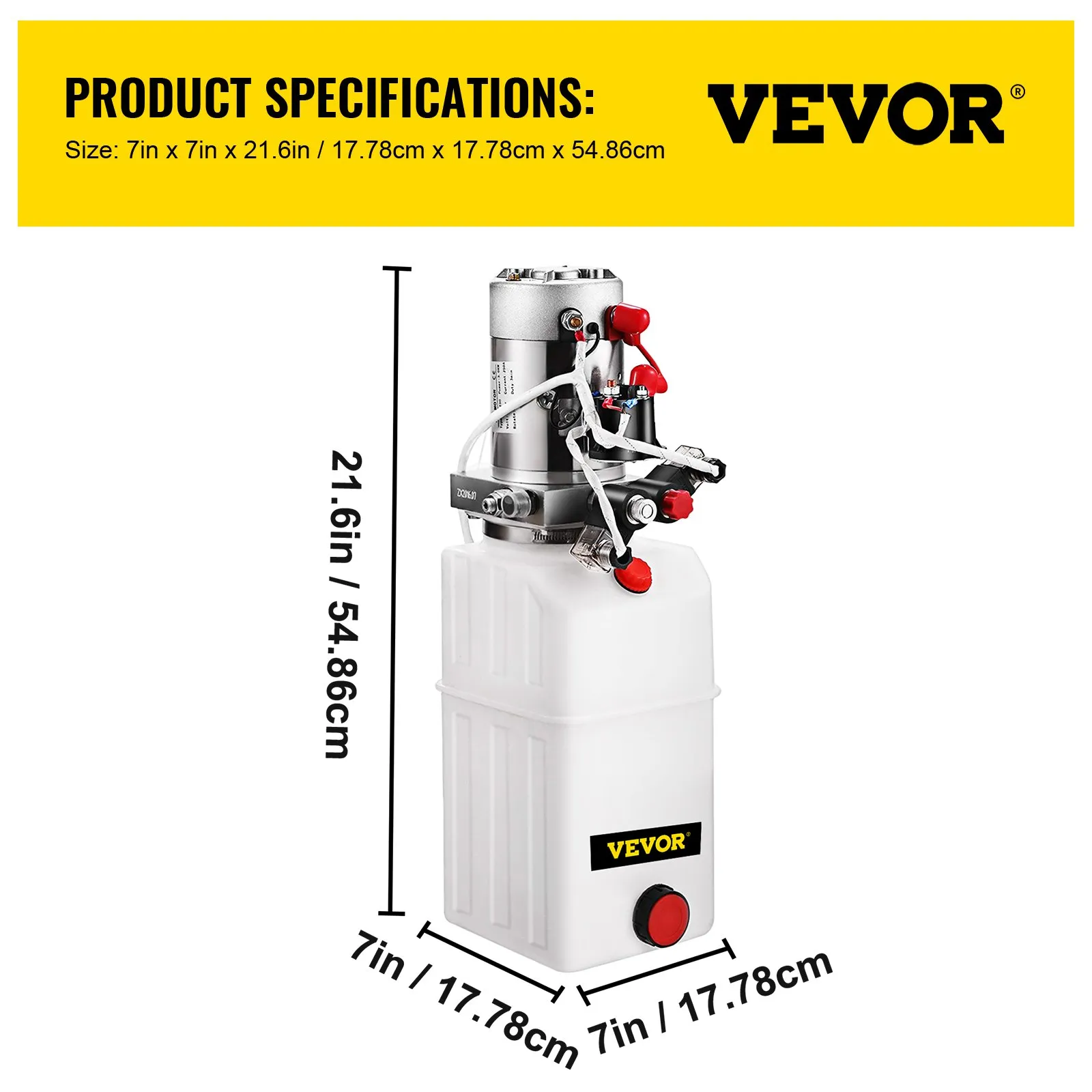

Specification

Tank Material
Plastic

Displacement of hydraulic pump
0.825GPM(1.1ML/R, Applicable to all single power unit for 4, 6, 8, 10 quarts)

Pressure relief valve
22MPA(3200 PSI Max. Relief Setting For Increased Lifting Power on A port)

Rated speed
2850R/MIN

Motor power
1.6KW (Applicable to all single power unit for 4, 6, 8, 10 quarts)

Motor voltage
DC12V

Fuel tank
6L

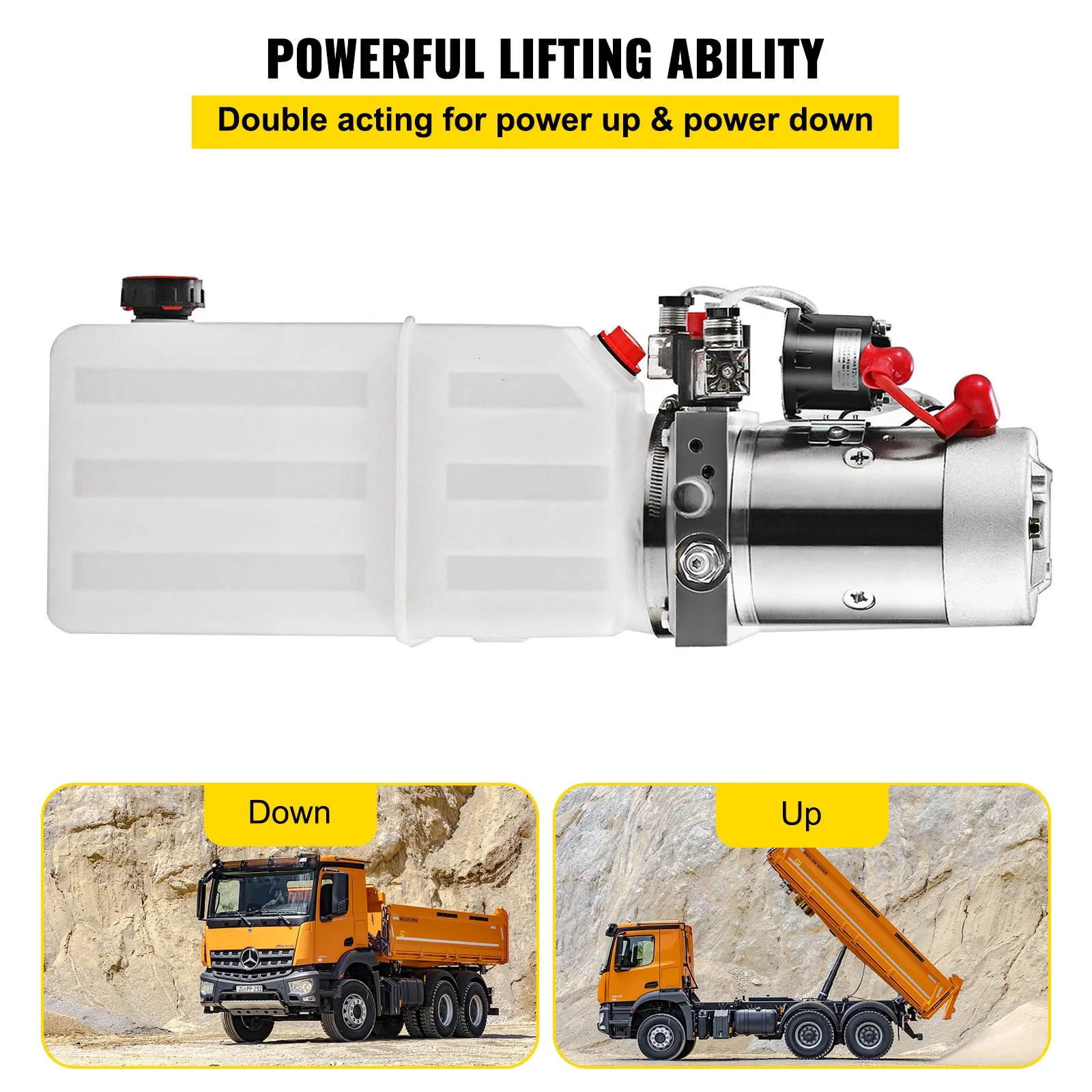

Double acting Power-Up/Power Down

1500 PS Max Relief Setting on B port

6 Quart Translucent Reservoirs

SAE # 6 Port, Horizontal mount

Handheld pendant with about 15 foot (4.5 m)removal cord and start solenoid
