Hydraulic 10QSAMHP Pump Electric Hydraulic Pump
$204.99
Product Details
Easy to Use
Reliable Quality
Rapid Start
Wide Application
Product brand
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees. Tt is dedicated to providing DIYers and professionals with tough equipment & tools at the lowest prices.

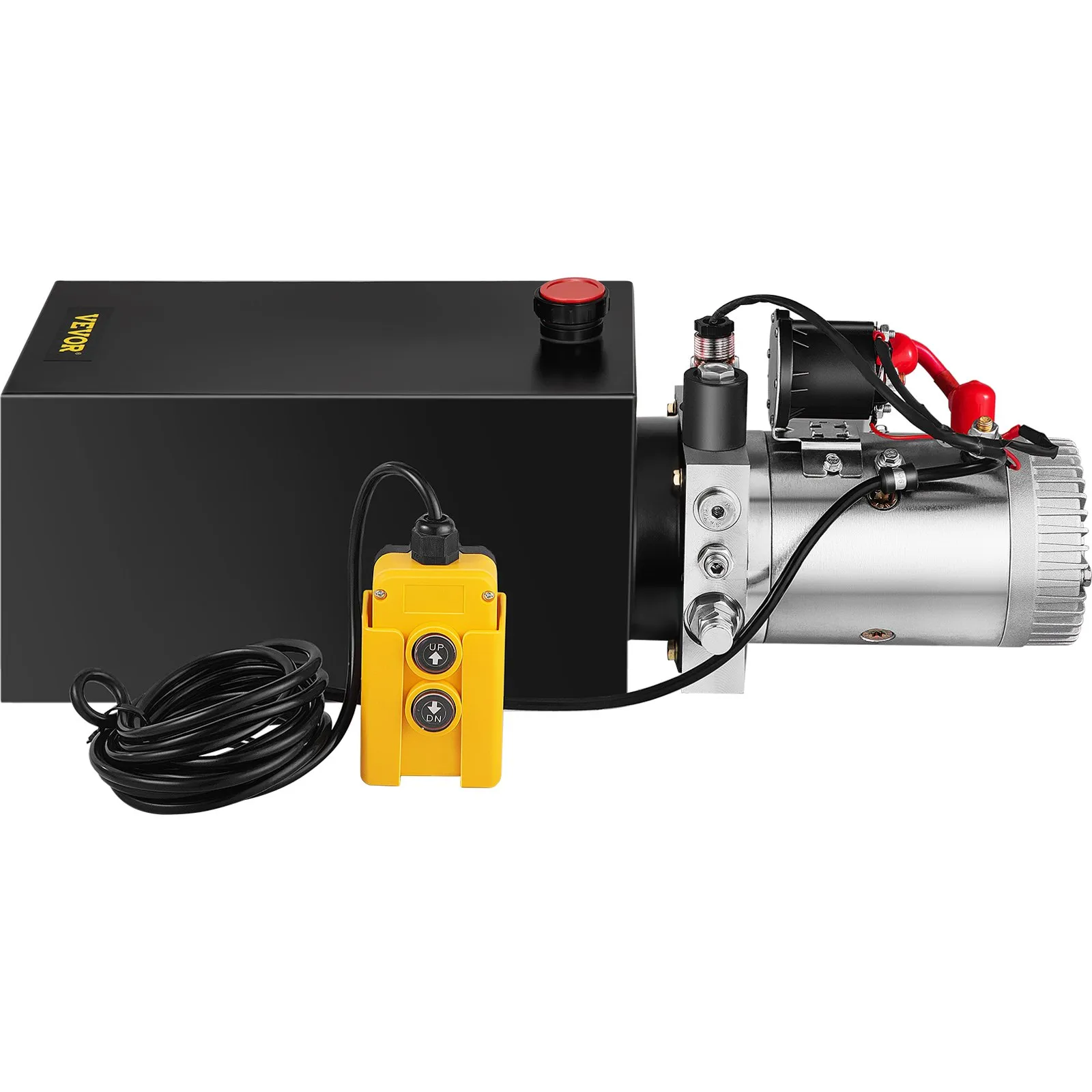

Hydraulic 10QSAMHP Pump Electric Hydraulic Pump Metal Reservoir 10 Quart Single Acting For Dump Trailer
Product Features:
Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 10-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a single-acting pump for power up and gravity down.
Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. One additional SAE#6 connector and one 15 ft remote control are included in the package.

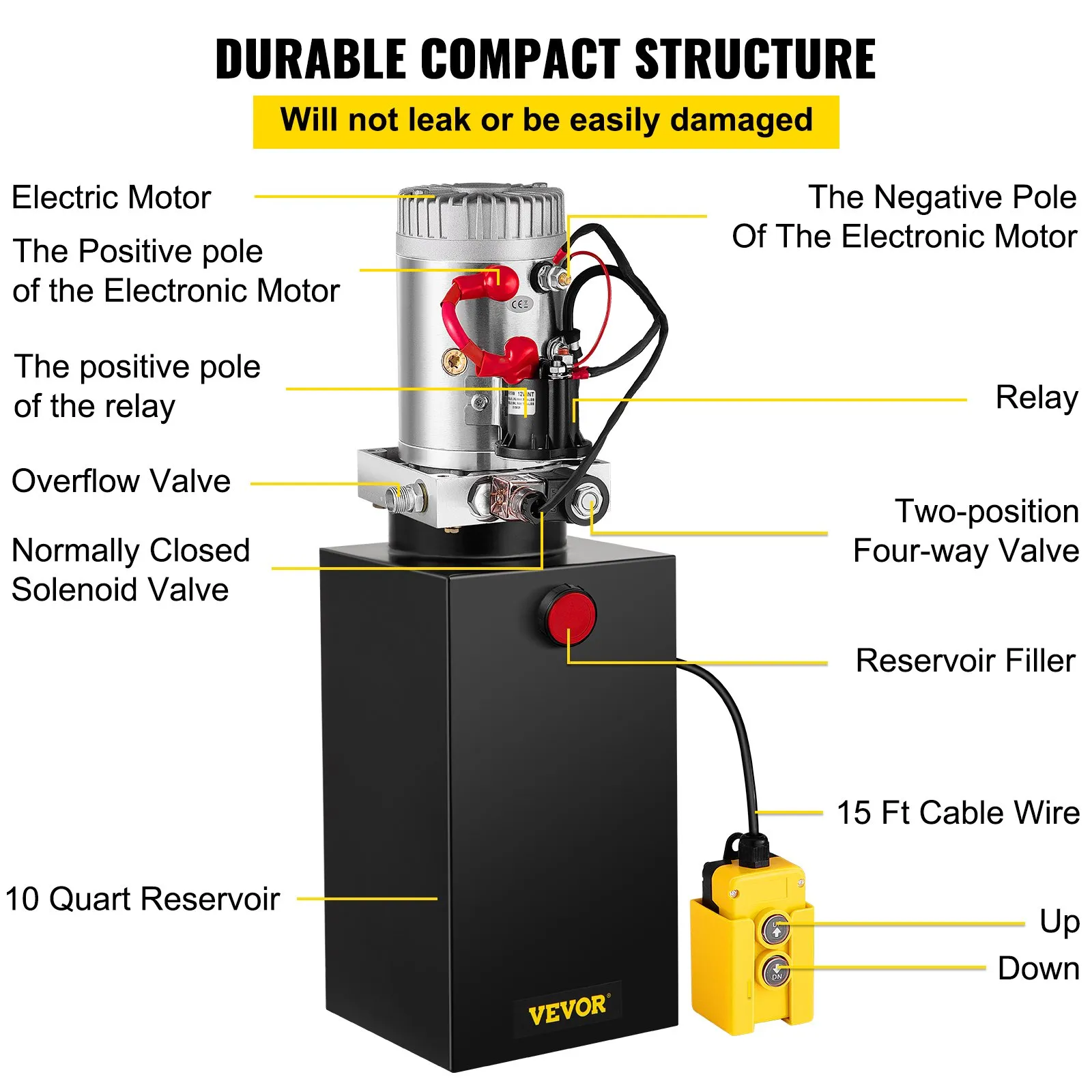

Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Specification
Model
10QSAMHP
Tank Material
Metal
Tank Capacity
10L/ 10Quart/ 2.5 Gal
Flow
2.0 GPM
Max. Relief Valve Setting A Port
3200 PSI
Max. Relief Valve Setting B Port
1500 PSI
Rated Speed
2850R/MIN
Voltage
DC12V
Power
1.6KW (Rated), 3.0KW (Max)
Duty
3 Min
Traffic
1.1 cc/r
Rotation
Clockwise
Connector
SAE # 6
Mount Position
Horizontal/ Vertical
Control
Solenoid and Handheld Pendant
Pendant Control Length
15ft/ 4.5 m
https://myofficemachines.com/index.php/product/hydraulic-10qsam…c-hydraulic-pump/
| Weight | 35 lbs |
|---|---|
| Dimensions | 8 × 8 × 23 in |
