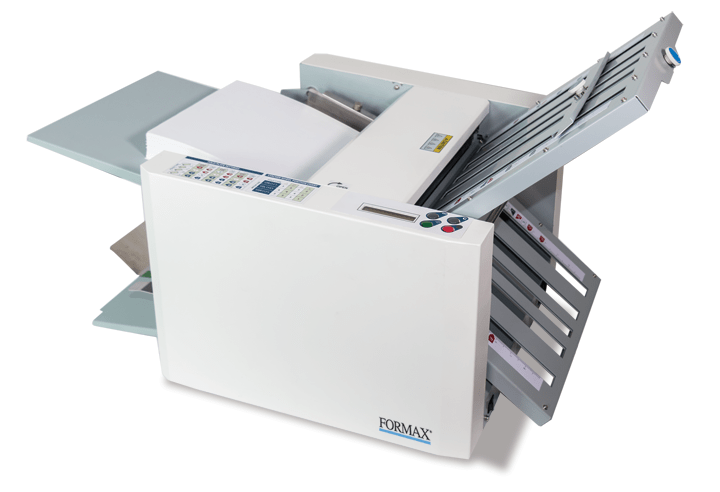

FORMAX FD 324 Tabletop Document Folder

Description

The FD 324 Document Folder offers an unmatched level of performance and affordability.
This rugged, compact unit processes up to 8,600 sheets per hour in 11”, 14” and 17” paper sizes.
Removable top and bottom fold plates provide for quick and easy set-up. Fold plates are clearly marked for four common fold settings: Letter, Zig-Zag, Double Parallel, and Half.
Quick release fold stops and fine tune adjustment knobs ensure crisp, accurate folds every time.

Designed with ease of operation in mind, it utilizes a drop-in feed system, eliminating the need to fan paper.
Simply square the paper stack and load it into the feed tray.
The LCD control panel features a 3-digit resettable counter and AutoBatch, which allows users to process a specific number of sheets with a pause between sets, for easy unloading.
Its output conveyor includes easily adjustable stacker wheels for neat, sequential stacking of folded pieces.

As with all Formax folders, the FD 324 is constructed with a heavy-duty steel frame and molded, high-impact side covers for durability.
The three-tire friction feed accurately pulls paper info the folder, while the skew adjustment allows for moving the feed table left or right, to produce crisp, accurate folds.

Clearly-marked fold settings and simple out-of-the-box operation make it the perfect addition to schools, churches, and offices looking for easy setup and minimal adjustments.

Features

Speed: up to 8,600/hour
Quick release fold stops
Paper sizes up to 12×18
Four standard folds
AutoBatch
Removable fold plates
Drop-in top-feed system

Quick, easy set-up
Folds up to 8,600 pieces per hour
LCD control panel with resettable counter
Output conveyor with adjustable stacker wheels
Three-tire drop-in feed system
Handles paper sizes up to 12” x 18”
Intuitive graphic fold guide
Pre-marked with 4 standard folds
Quick-release fold stops
AutoBatch
Fine-tuning knobs
Rugged all-metal construction
Skew adjustment

Product Details

The FD 324 Document Folder processes up to 8,600 sheets per hour and can accommodate paper sizes up to 12” x 18”.
Its removable fold plates are clearly marked with four common fold settings for Letter, Zig-Zag, Double Parallel, and Half Fold.
The LCD Control Panel features AutoBatch, which allows users to process a specific number of sheets with a pause between sets, ideal for groups of flyers or mailings.
In addition, the output conveyor includes easily adjustable stacker wheels for neat, stacking of folded pieces.
The three-tire friction feed system accurately pulls paper into the folder, while the skew knob allows for moving the feed table left or right, to adjust for minor misalignments.

Specifications

Speed Up to 8,600 sheets per hour
Hopper Capacity Up to 500 sheets 20#
Pre-Marked Folds Letter, Zig-Zag, Half, Double Parallel
Paper Sizes Min: 4” W x 5” L (101 x 127mm)
Max: 12” W x 18” L (305 x 457mm)
Dimensions 33” L x 18.5” W x 18” H
(838 x 470 x 457mm)
Weight 75 lbs (34kg)
Power 120VAC 60Hz
Safety Certifications CE approved
