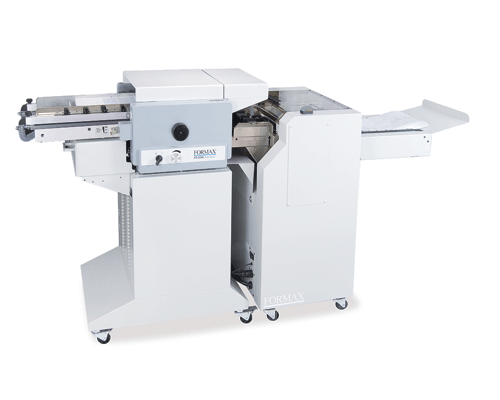

FORMAX AutoSeal FD 2096 Pressure Sealer

Description

The AutoSeal® FD 2096 uses patented pressure seal technology to efficiently process cut-sheet pressure seal forms in a mid-volume production environment, at speeds of up to 30,000 forms per hour.
Its bottom-suction air-feed system provides accurate feeding and allows for continual loading of forms, dramatically reducing down time.

Set-up is quick and easy with rugged metal fold plates, clearly marked with both standard and metric markings, and fold rollers made of heavy-duty polyurethane foam, which eliminates the need for gap adjustments.
The sealing unit utilizes a 17” ball transport deck for a smooth, reliable transition from the fold rollers into the sealer, and requires no adjustments.

User-friendly features include sound-dampening fold plate covers for quieter operation, a 6-digit resettable LED counter, rugged locking casters, and a high-capacity 24” output conveyor which is collapsible for convenient storage when not in use.

Heavy duty construction combines with quick set-up and operation to make the FD 2096 a powerful solution for processing mid-volume pressure-seal mailings.

Features

Bottom-suction air-feed
Speed: Up to 30,000/hr
Rugged fold plates
Sound-dampening covers
24″ output conveyor

Top-loading bottom air feed
Variable speed control
Heavy duty fold rollers
Adjustable 17” 8-ball transport deck
Rugged fold plates
Precision ground clutching 4-roller system
Fully-enclosed air-feed pump
Rotating air suction drum
Casters for easy transport
7-point quick-release fold stops
24” integrated outfeed conveyor
Adjustable stacker wheels
User-friendly adjustments
Resettable 6-digit LED counter
Insulated fold plates for noise reduction
Infrared fault detection
Plexi-cover with safety interlock
Static eliminator brush

Product Details

The AutoSeal® FD 2096 uses patented pressure seal technology to efficiently process cut-sheet forms at speeds of up to 30,000 forms per hour.

Its bottom-suction air-feed system provides accurate feeding and allows for continual loading of forms, dramatically reducing down time.

Set-up is quick and easy with rugged metal fold pates, clearly marked with standard and metric markings.

The sealing unit utilizes an adjustable 17” 8-ball transport deck for a smooth, transition from the fold rollers into the sealer.

Features include user-friendly operator controls, sound-dampening fold plate covers for quieter operation, rugged locking casters, and a high-capacity 24” output conveyor which is collapsible for convenient storage.

Specifications

Hopper Capacity Up to 350 sheets 24#
Speed Up to 30,000 forms per hour
Usage Mid-Volume Production
Form Size
Up to 12” W, up to 17” L
(305mm, 432mm)
Dimensions
(Conveyor Extended)
86” L x 28” W x 42” H
(219 x 71 x 107cm)
Dimensions
(Conveyor Closed)
64” L x 28” W x 42” H
(163 x 71 x 107cm)
Weight 450 lbs (204kg)
Power 120V 60Hz, 30Amp, single phase
Power Plug NEMA L5-30P
