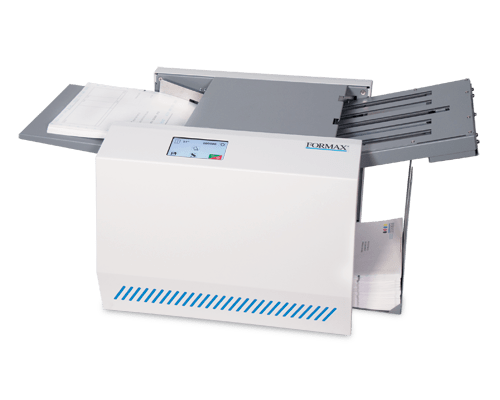

FORMAX AutoSeal FD 1606 Pressure Sealer

Description

Proudly built in the USA, the FD 1606 AutoSeal® is the ultimate mid-volume pressure seal solution.

With its automatic fold settings and full color touchscreen, the FD 1606 combines enhanced user flexibility, ease of operation, and affordability.

It has never been easier to process one-piece pressure sensitive mailers.

The automatic fold plates allow users to easily switch between fold types and paper sizes while its full color touchscreen with internationally-recognized symbols guides users through setup and operation, making it easy for anyone to use.

Users simply choose the form length and fold type, and the fold plates automatically adjust to the correct setting for 11” and 14” form sizes.

Standard features include a three tire drop-in feed system, 6-digit resettable counter, and the ability to store up to 3 custom jobs, all in a compact and sleek desktop design.
Fold types include Z, C, Half, Uneven Z and C, and custom folds.

Pressure sensitive one-piece mailers can be used for virtually any application that can be printed on one form, including checks, invoices, school reports, tax forms, direct mail pieces, and appointment notices.
This process eliminates the added cost of envelopes, creating a clean and appealing mail ready piece with ease.

Built with proven Formax technology, the automatic fold settings, innovative color touchscreen, simple set-up and operation make the FD 1606 an ideal solution for any school, municipality, or small business that is cost conscious but requires the versatility and dependability of a more expensive pressure sealer.

Features

Automatically-adjusting fold plates
Color touchscreen control
Speed: Up to 100 pieces/min
Three-roller top-feed
Processes up to 14″ forms
Resettable counter

Automatic fold plates
Color touchscreen control panel
Compact desktop design
Drop-in top feed system
14” form length capability
Processes up to 100 forms per minute
Infeed holds up to 200 forms
Simple set-up and operation
Six-digit resettable counter
Adjustable catch tray
Adjustable side guides on hopper

Product Details

The FD 1606 AutoSeal is the ultimate mid-volume pressure seal solution.

Automatic fold plates allow users to easily switch between fold types and paper sizes, while the full color touchscreen guides users through setup and operation.

Standard features include a drop-in feed system, 6-digit resettable counter, and the ability to store up to 3 custom jobs.

Pressure  sensitive one-piece mailers can be used for checks, invoices, school reports, tax forms, direct mail pieces, and appointment notices, eliminating the added cost of envelopes.
Options include an 18” output conveyor, reverse stacking conveyor, and FD 402 Series Jogger.
Proudly made in the USA, the FD 1606 is built with proven Formax technology, and the durability to last.

Specifications

Hopper Capacity Up to 200 forms 20#
Fixed Speed Up to 100 forms per minute,
based on 11” Z fold
Paper Size Up to 8.5” W x 14” L (216 x 356mm)
Fold Types Z, C, Uneven Z and C, Half, Custom
Monthly Duty Cycle Up to 35,000/month
Dimensions 24” L x 17” W x 13” H
(610 x 432 x 330mm)
Weight 81 lbs (37kg)
Power FD Model: 120 Volts AC 50/60Hz
FE Model: 220 Volts AC 50/60Hz
Document Sequence Standard sequence is A-to-Z input,
Z-to-A output
Certifications UL, CE, and CUL Approved
Made in USA
