Dry-Lam HLA-2301 High Speed Laminator (DL-HLA2301)

Dry-Lam HLA-2301 High Speed Laminator (DL-HLA2301)

Features

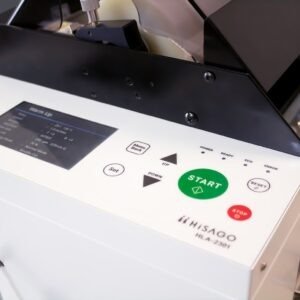

Easy-to-Use Color LCD
Screen & Controls
Updated screen controls make operation simple and clear for easy usage by any user.

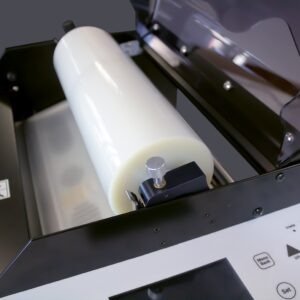

Upgraded Film Roll Installation
Simple latching roll installation and locking mechanism makes loading and removing film simple and easy! Just load, latch, and go!

Simple-Slide Paper Size Adjustment
Easy-to-adjust paper size trimmer guides with micro-precision for exact cuts every time!

Multi-thickness
Automatic Feed Tray
Multi-thickness feed tray can fit up to 200 sheets, auto-feeding easily up until the final sheet!

Included Waste Bin
Waste bin inside cart conveniently catches scraps after trimming for easy disposal.

Telescoping Catch Tray
The new telescoping catch tray is ideal for use with a variety of materials, accommodating large sheets when you need it, and saving space when you don’t!

Specifications

Easy laminating and trimming with included mobile cart
Ultra-quick warm-up time of less than 5 minutes

Automatic single or double-sided lamination

2 Automatic trim options
– Flush-cut: precise, micro-adjustable with ± 3mm margin adjust
– Border-cut: custom-sealed options with 4-sided trim uniformity

Hands-free, automatic feed tray

Simple operation with specially encoded film for auto settings.

Model HLA-2301
Laminating Width 12.6″
Speed 68″ per min
Film Thickness 1.5 – 10 mil (10 mil single-side only)
Laminating Thickness 16 mil
Heat Type Heated Rollers: Dual heat only
Temperature Range 170 – 270°F
Warm-Up Time Less than 5 minutes
Paper Sizes 8.5”x5.5”, 8.5”x11”, 11”x17”, 12”x18”, 13”x19”
Paper Feed Capacity 200 Sheets
Trimming Methods Flush cut or Border cut
Operation Panel Color LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable
Voltage 1200W
Power Supply 100-240 VAC, 50-60Hz
Laminator Weight 170 lbs (77 kg)
Dimensions (LWH) 48″ x 23.5″ x 44″
(1219.2 x 596.9 x 1117.6 mm)
Boxed Weight 156 lbs
Boxed Dimensions (LWH) 31.5″ x 43.3″ x 71″
(800 × 1100 x 1800mm)
