EVOR YXI256 Thermal Camera

VEVOR YXI256 Thermal Camera, 320 x 240 TISR Super Resolution, Thermal Imaging Camera with 2MP Visual Camera, 256 x 192 IR Resolution, 25 HZ Refresh Rate, -4°F to 1022°F, 4 Image Modes & 6 Color Palettes

Product Features:

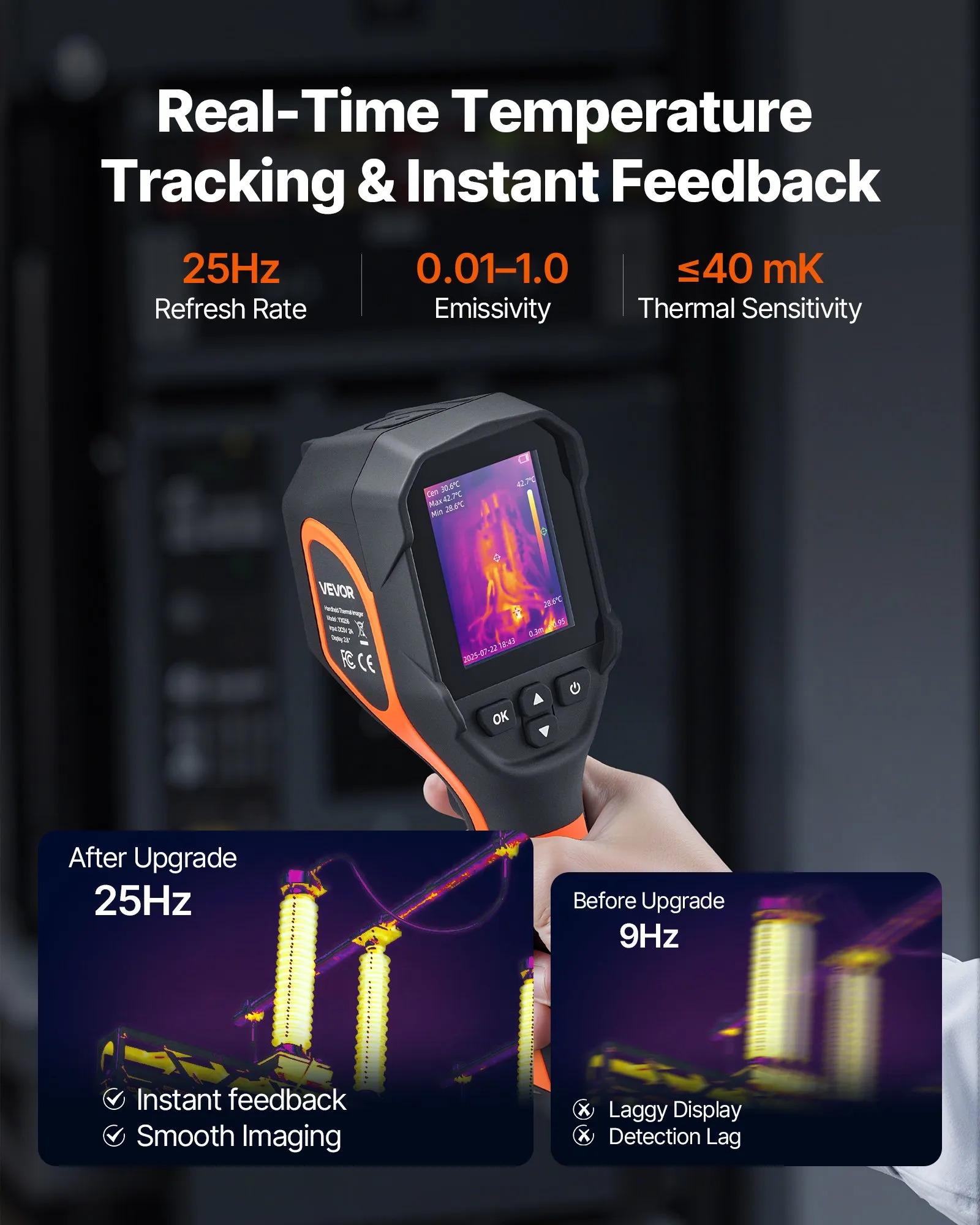

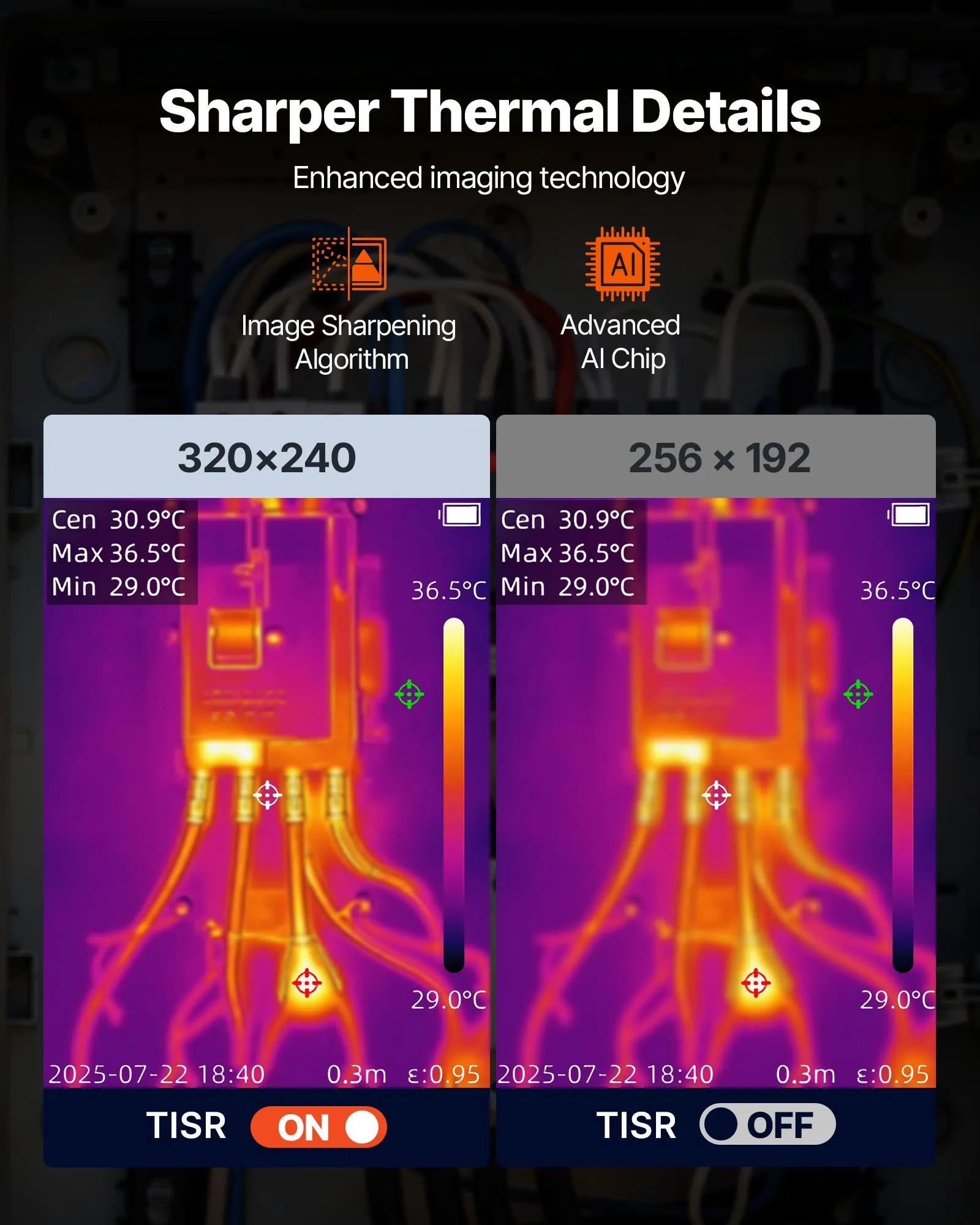

Image Enhancement Technology: The VEVOR thermal imager adopts TISR enhancement technology, upgrading the original IR resolution of 256×192 to a super resolution of 320×240. With a 25Hz refresh rate, ≤40 mK thermal sensitivity, and a wide 50°x37.2° field of view, combined with image sharpening algorithms and a high-performance AI chip, its 2.8-inch LCD screen captures and displays heat details with greater clarity.

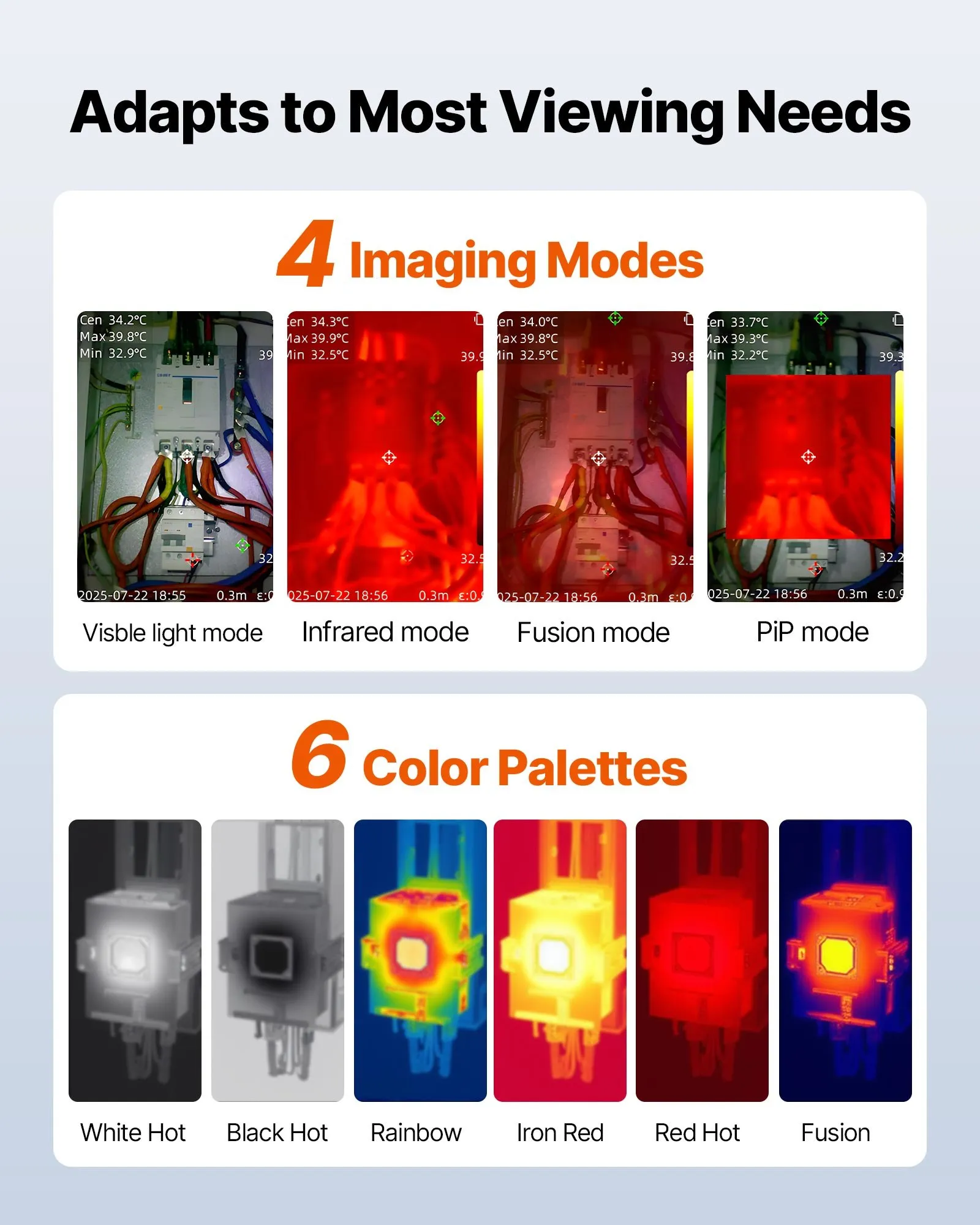

Accurate Temperature Measurement: This infrared camera supports a wide temperature range of -20℃ to 550℃ / -4°F to 1022°F. It automatically tracks hot and cold spots and displays center, maximum, and minimum temperature data. With 4 thermal color modes and 6 palette options, it adapts to different working needs, delivering more intuitive and clearer imaging.

Quick Fault Detection: Our infrared thermal imager features built-in high/low-temperature alarms to automatically monitor deviations and issue alerts instantly. It helps you quickly identify overheating or low-temperature zones, precisely locate faults, and detect hidden heat risks, making potential problems clearly visible for early action.

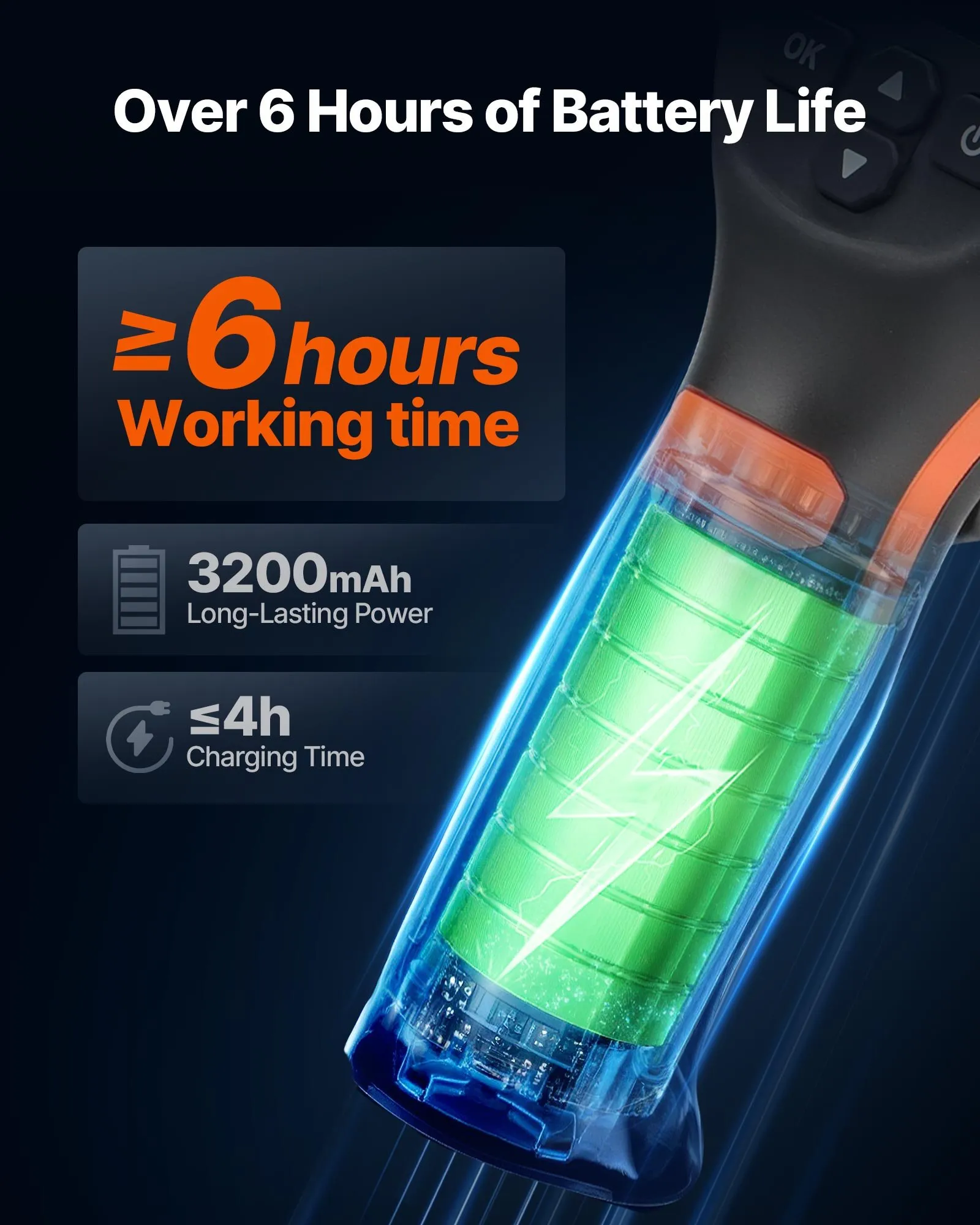

Multiple Upgrades: This thermal camera is equipped with a 3200mAh high-capacity battery that provides up to 6 hours of runtime. It supports auto power-off, photo and video recording, and LED lighting. The lightweight yet sturdy body withstands drops up to 2m and, with IP54 dust- and water-resistant protection, is ready for challenging environments.

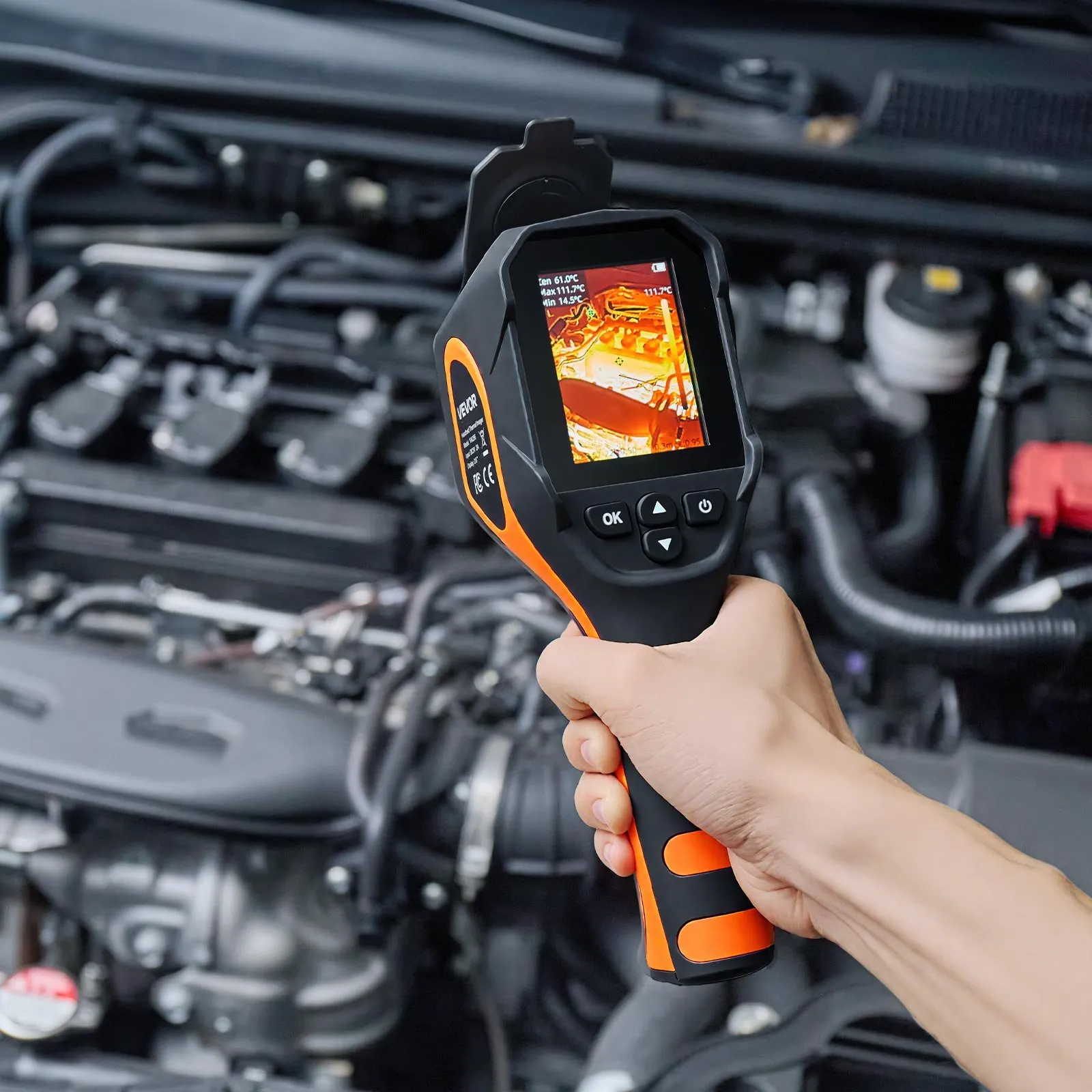

Wide Applications: Our thermal imaging camera supports USB charging for convenience and comes with 16GB built-in storage, capable of saving over 60,000 images. It supports 10 language settings and is widely applicable for circuit board inspection, HVAC troubleshooting, electrical checks, building diagnostics, vehicle maintenance, and industrial detection.

Specification

Item Model Number
YXI256

Infrared Resolution
256 x 192 pixels

Enhanced Resolution
320 x 240 pixels

Display Size
2.8 inch

Refresh Rate
25Hz

Thermal Sensitivity
≤ 40 mK

Focus Mode
Fixed Focus

Visible Light Resolution
1600 × 1200 pixels (2MP)

Emissivity
0.01 – 1.0

Measuring Distance
0.3 – 3 m

Temperature Measurement Range
-4℉ to 1022℉ / -20℃ to 550℃

Temperature Resolution
0.1°C

Temperature Accuracy
±2°C

Temperature Display
Center / Hot / Cold Spot

Battery Capacity
3200 mAh

Internal Storage
16 GB

Drop Resistance
2 m Drop Resistance

Waterproof Rating
IP54

Language Options
10 Languages

Operating Temperature
14℉ to 122℉ / -10℃ to 50℃

Storage Temperature
-4℉ to 140℉ / -20℃ to 60℃

Tripod Support
Supported (Standard 1/4-inch Thread)

Net Weight
1.0 lbs / 0.44 kg
