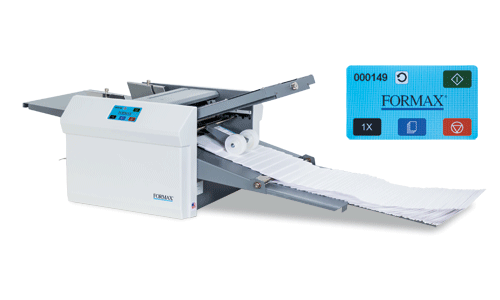

FORMAX FD 346 Touchscreen Desktop Office Folder
Description
The FD 346 Document Folder is a fast, dependable and easy-to-use solution for virtually all folding applications.
Its color touchscreen control panel features internationally-recognized symbols in place of text, making it easy for anyone to use.
Six popular folds are clearly marked on the fold plates for quick set-up and operation, simply slide the fold stop to the desired fold and go.
Additional adjustments can be made with the fine tuning knobs at the end of each fold plate for precision folding.
No need to stand and watch over this folder: operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks.
The FD 346 will fold the 500 sheets in no time at all and hold the folded pieces on its patented telescoping conveyor system until they are retrieved.
The optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time through a dedicated feed system with its own side guides and skew adjustment system.
The FD 346 is capable of processing paper up to 18” in length and up to 12” in width giving it the flexibility to handle a variety of paper sizes.
With its customizable jobs, operators can fold in virtually any configuration that requires only two folds.
Cross folding adds to the FD 346’s flexibility allowing for additional folds in a second pass.
The innovative touchscreen, simple set-up and operation make the FD 346 an ideal solution for any church, school or small business that is cost conscious but requires the easy operation, versatility and dependability of a more expensive folder.
Features
Color touchscreen
graphics-based
Telescoping output stacker
Speed: up to 15,500/hour
Folds up to 12″ x 18″
Adjustable stacker wheels
Folds up to 15,500 pieces per hour
Color touchscreen
Drop-in three-roller feed system
Adjustable stacker wheels
Telescoping conveyor holds up to 500 sheets
6-Digit resettable & 8-Digit life counters
AutoBatch™ programmable setting
Pre-marked for six folds in common paper sizes
Custom folds
Quick release fold stops
Fine-tune adjustment
Cross-folding guide for two-pass operation
Easy-off feed wheel shaft
Self centering side guides
Fault detectio
Product Details
The FD 346 Document Folder is a fast, dependable, easy-to-use solution for virtually all folding applications.
The color touchscreen control panel uses internationally-recognized symbols in place of text, making it easy for anyone to use.
Six popular folds are clearly marked on the fold plates. Simply load the feeder with up to 500 sheets, and after folding, the FD 346 will hold the finished pieces on patented telescoping conveyor system.
Additional features include AutoBatch for processing sets of documents, adjustable output stacker wheels, a cross-folding guide for two-pass operation, and the ability to set custom folds.
The optional multi-sheet feeder allows up to 4 stapled or unstapled sheets to be folded at one time.
Specifications
Speed Up to 15,500 sheets per hour,
based on 11” Z-Fold
Hopper Capacity Up to 500 sheets 20#
Pre-Set Folds C, V, Z, Gate, Fold Out,
and Double Parallel
Paper Sizes Min: 3.5” W x 5” L (89 x 127mm)
Max: 12.25” W x 18” L (311 x 457mm)
Dimensions – Closed
Dimensions – Extended
33” L x 20” W x 19”H (838 x 508 x 483mm)
60” L x 20” W x 19” H (1524 x 508 x 483mm)
Weight 67 lbs (30kg)
Power FD Model: 110VAC 50/60 Hz
FE Model: 220VAC 50/60 HZ
Safety Certifications UL, CUL, and CE approved
