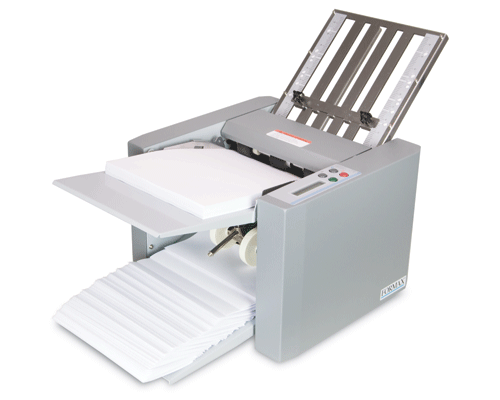

FORMAX FD 314 Desktop Office Folder

Description

The FD 314 Office Desktop Folder provides an economical solution for low-volume folding projects.
It combines a compact footprint with push-button controls, so it’s simple to use, right out of the box! Fold plates are clearly marked for four common folds – letter, zig-zag, half and double parallel – and can be easily adjusted for custom folds.
With a three-tire drop-in feed system, it processes 11” and 14” paper at speeds up to 7,700 sheets per hour, and offers a hopper capacity of up to 250 sheets.

The LCD control panel includes a resettable 3-digit counter, and AutoBatch for processing a set number of sheets with a pause between sets.
The built-in output conveyor features adjustable stacker wheels for neat, sequential stacking of folded pieces.

User-friendly fold settings and straighforward operation make this folder ideal for churches, schools, and offices that demand quick and easy set-up with minimal adjustment.

Features

Clearly-marked fold settings
Push-button operation
Speed: up to 7,700/hr
LCD control panel
Folds 11″ and 14″ paper
Hopper capacity: 250 sheets
AutoBatch

Folds up to 7,700 pieces per hour
Compact size
Quick set-up right out of the box
Pre-marked for four popular folds
Folds 11” and 14” sheets
LCD control panel with 3-digit counter
AutoBatch™
Output conveyor for neat stacking
Clearly marked fold settings
Drop-in top-feed system
Hopper holds up to 250 sheets
Four common fold settings

Product Details

The FD 314 Office Desktop Folder provides clearly-marked fold settings and push-button operation make it easy to use, right out of the box.

It’s capable of folding 11” and 14” paper at speeds up to 7,700 sheets per hour, with a hopper capacity of up to 250 sheets.

Fold plates are pre-marked with four common fold settings letter, zig-zag, half and double parallel and can be easily adjusted for custom folds.

The LCD control panel includes a resettable 3-digit counter, and AutoBatch for processing a set number of sheets with a pause between sets.

The built-in output conveyor features easily adjustable stacker wheels for neat, sequential stacking of folded pieces

Specifications

Hopper Capacity Up to 250 sheets 20#
Speed Up to 7,700 sheets per hour
Paper Sizes Min: 4” W x 5” L (102 x 127mm)
Max: 8.5” W x 14” L (216 x 356mm)
Paper Weight Up to 30# (112gsm)
Fold Types C, Z, V, Double Parallel
Dimensions 24” L x 14” W x 17” H
(610 x 366 x 432mm)
Weight 27 lbs (12kg)
Power 120V AC, 60Hz
Safety Certifications CE approved
