VEVOR EATB28-100 100 Plate Heat Exchanger 4*1-1/4″ MNPT Ports 5″x 12″ Brazed 316L St. Steel
Product Features:

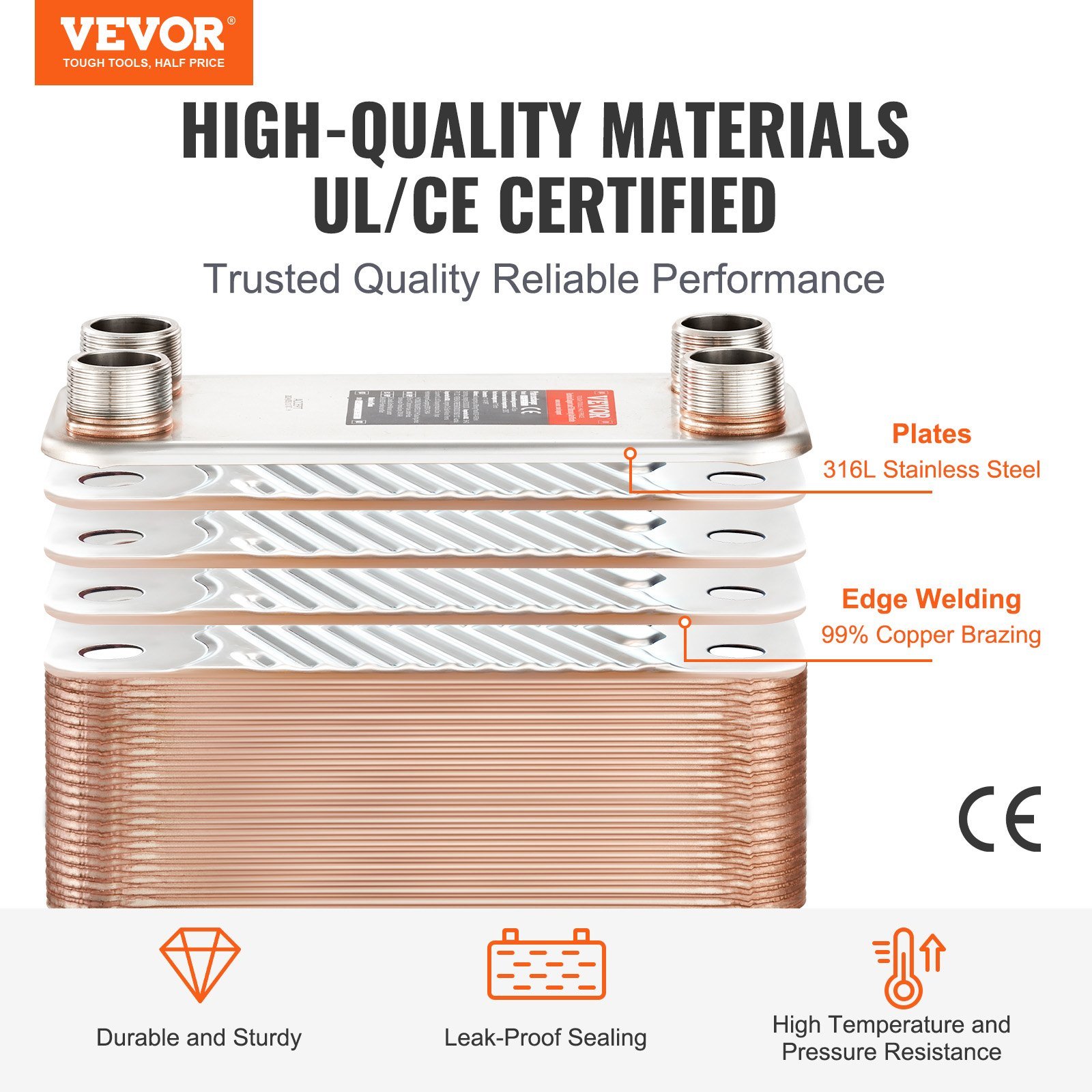

High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. UL and CE certified for reliable quality.

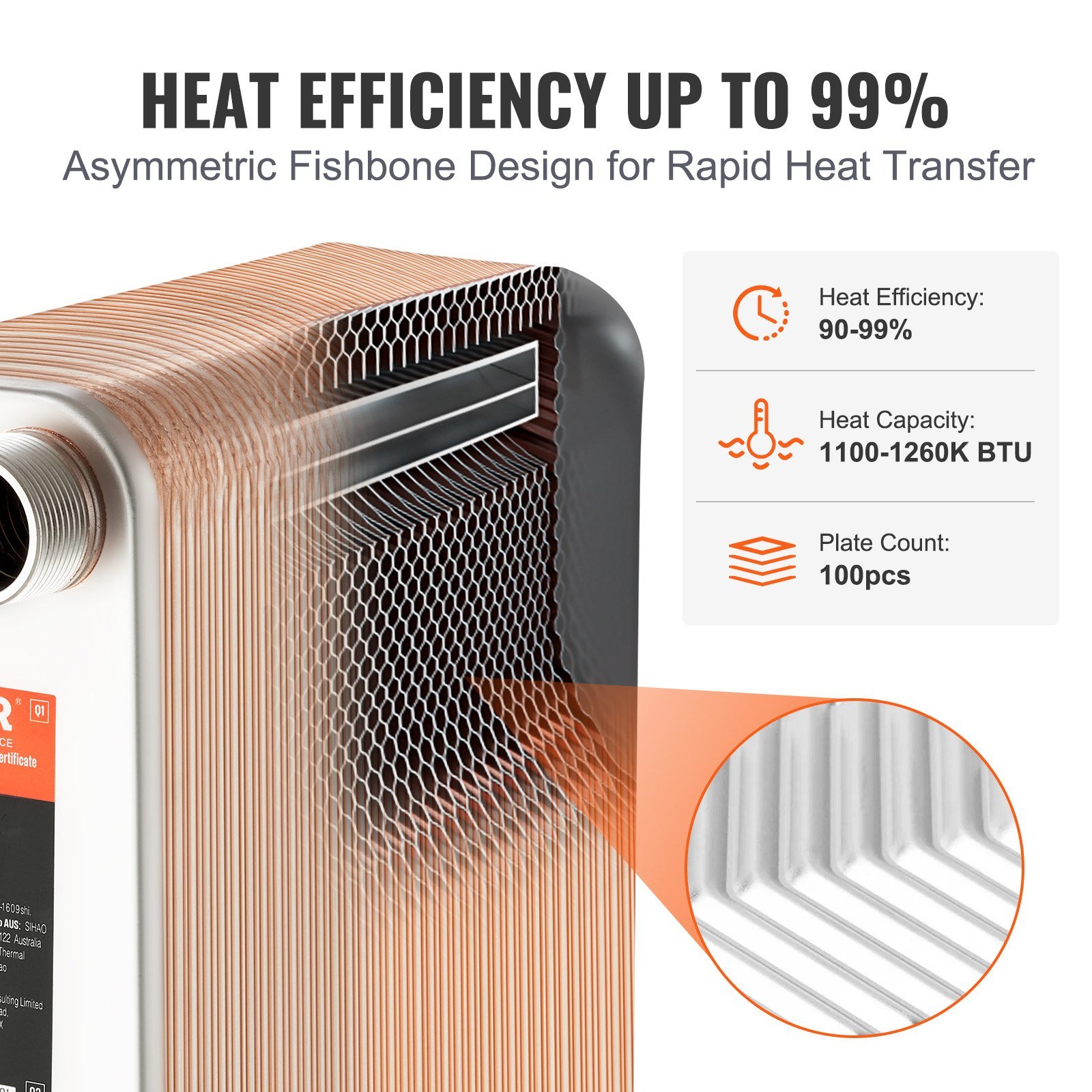

Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 1100-1260K BTU per hour, saving pump power and electricity, reducing overall application costs.

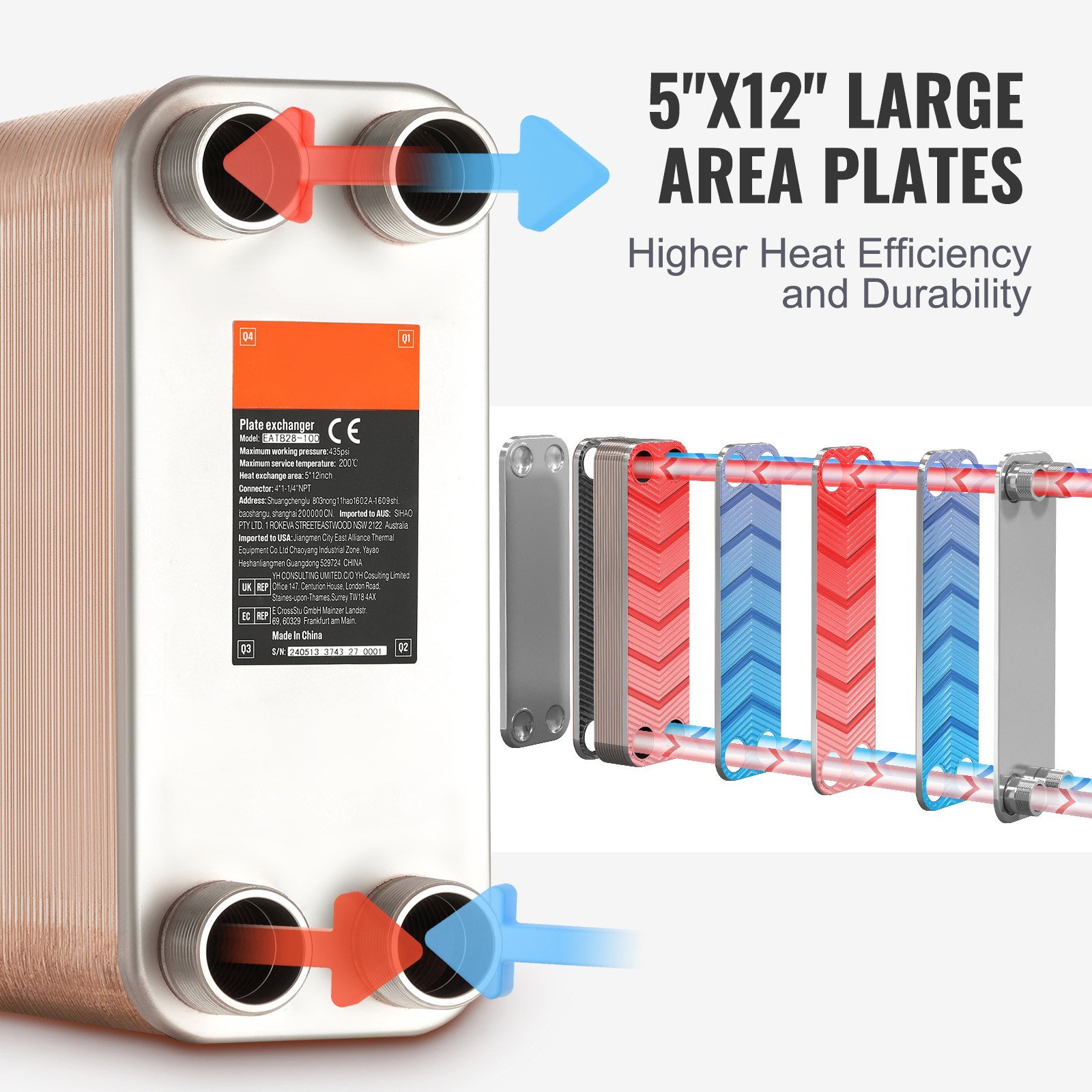

Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 100 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

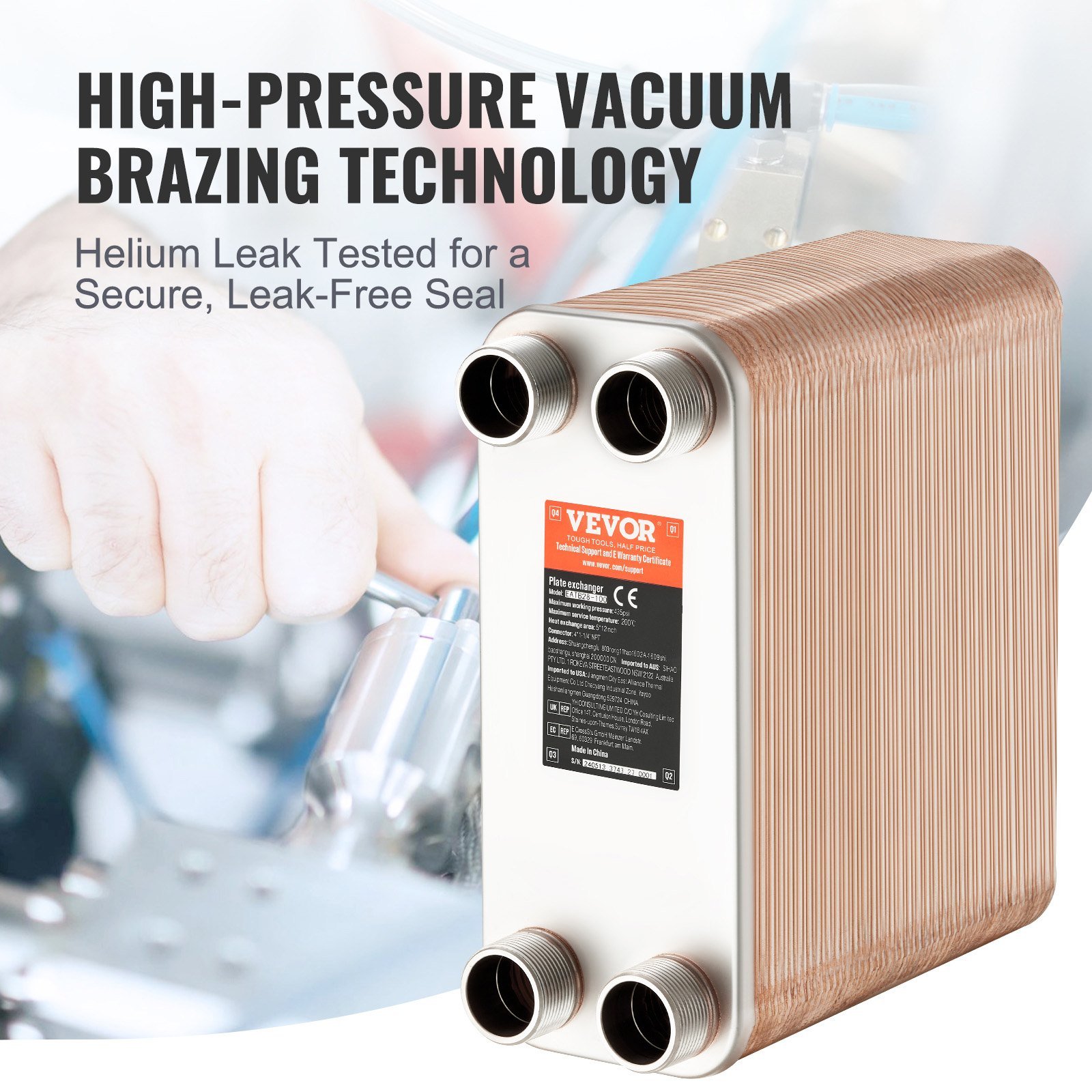

Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

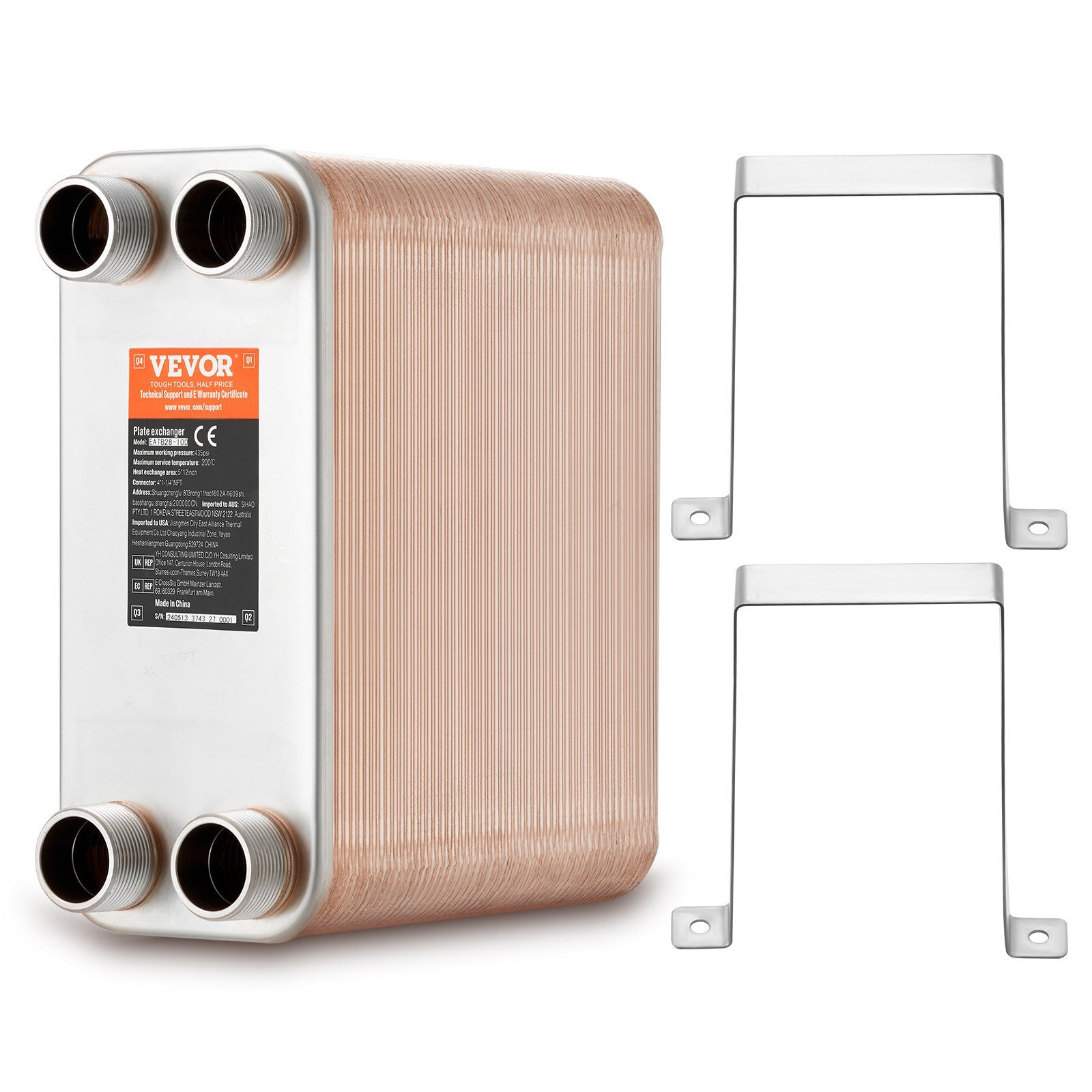

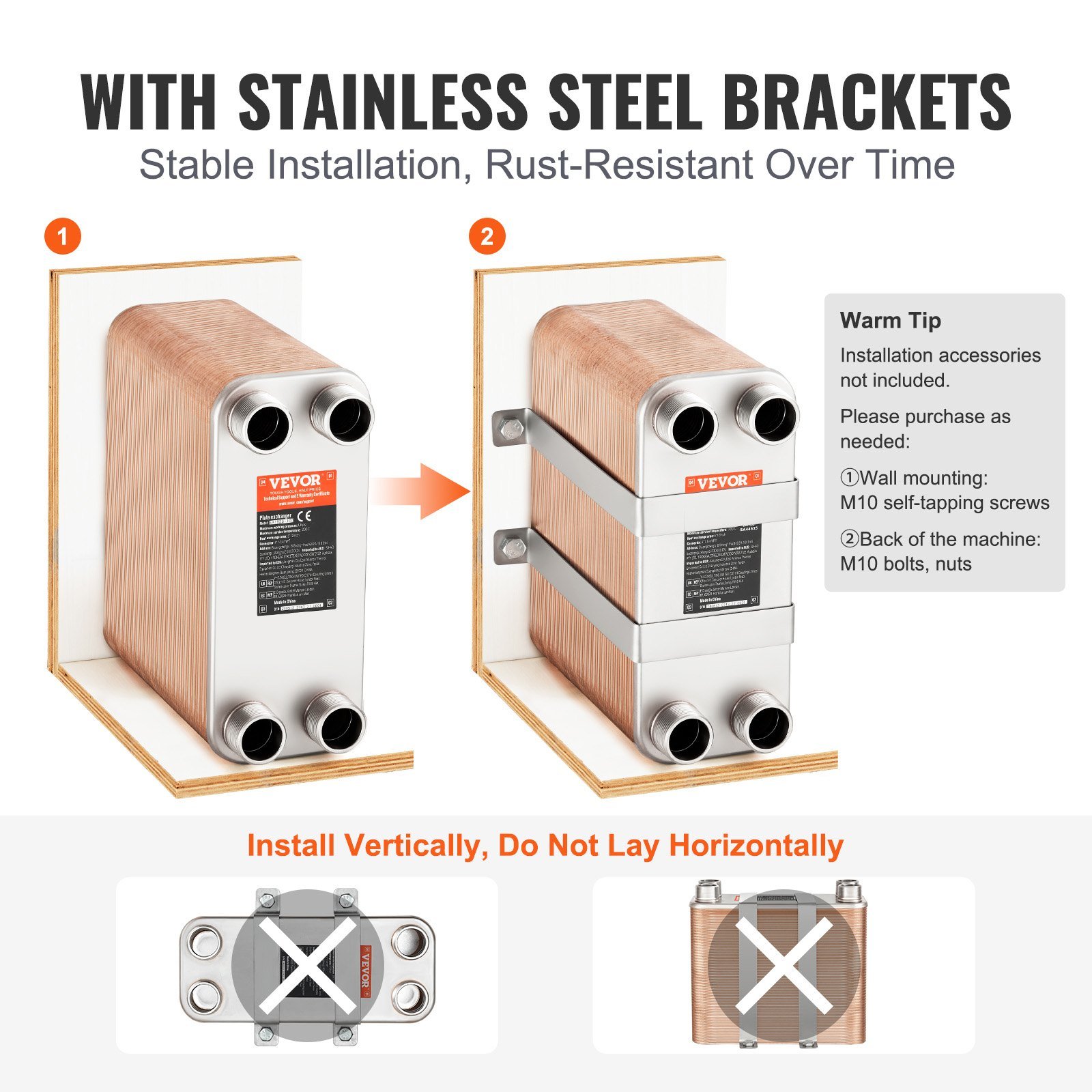

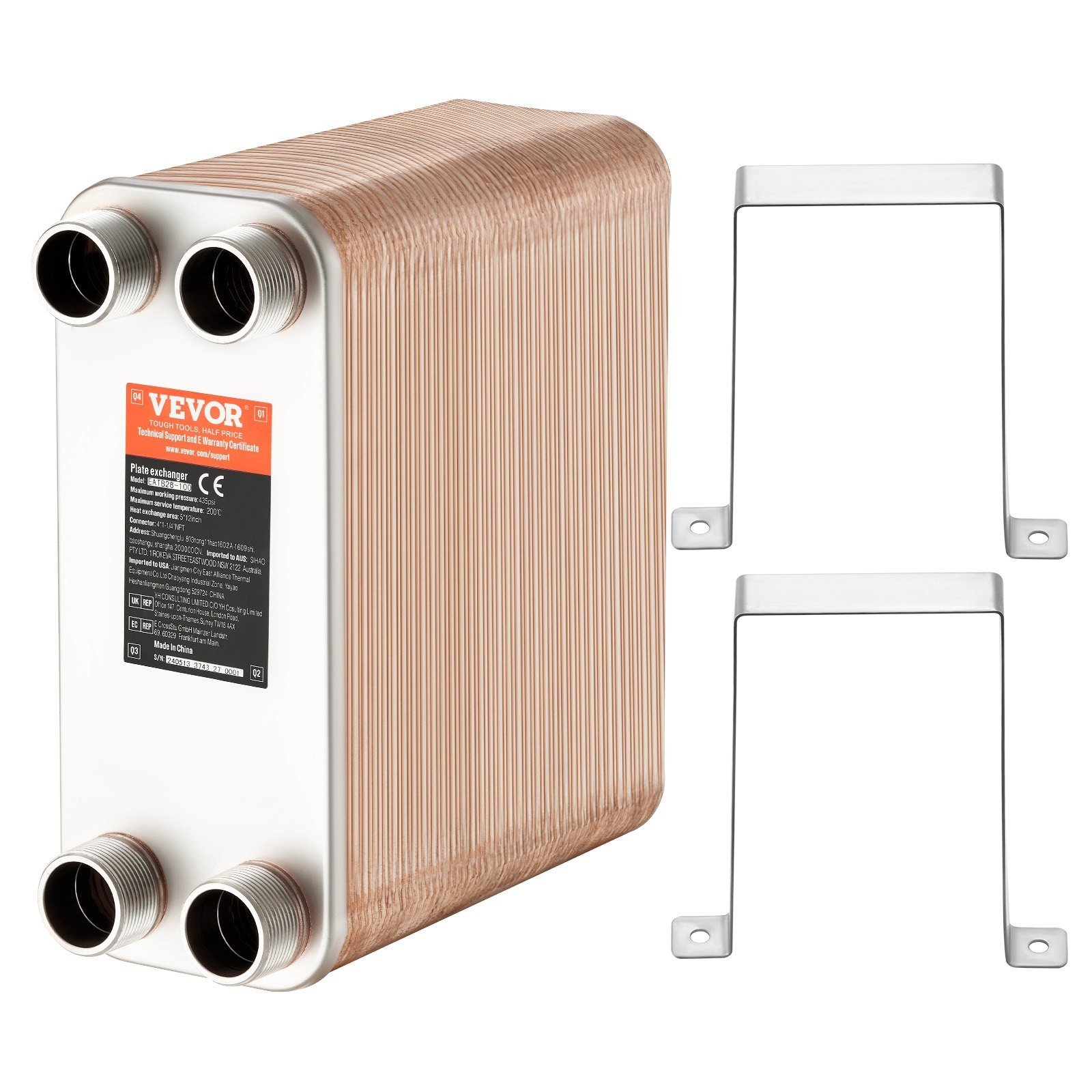

Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.
Specifications
Model
EATB28-100
Thermal Efficiency
90～99%
Heat Capacity
1100-1260K BTU
Plate Area
5×12 inch/ 127x305mm
Plates Quantity(pcs)
100
Port
4*1-1/4″ MNPT External Thread
Color
Stainless Steel + Copper Color
Material
304/316 Stainless Steel, Solder
Net Weight (with Accessories)
33.51lb / 15.2kg

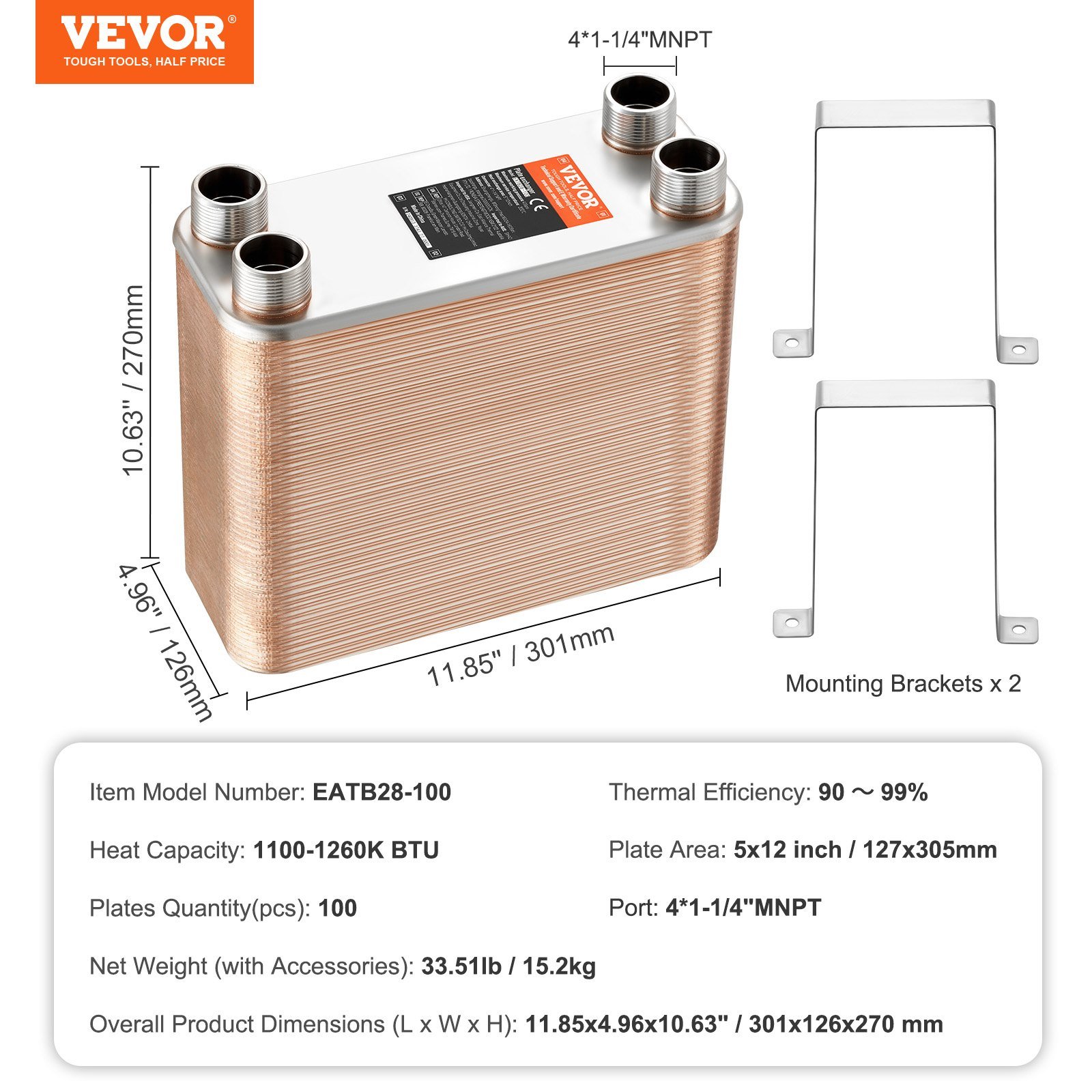

Product Dimensions (L x W x H)
11.85×4.96×9.69in / 301x126x246 mm
