VEVOR B12-60 Heat Exchanger 3″x7.5″ 60 Plates Brazed Plate Heat Exchanger 316L 1/2″ BSP FPT Heat Exchanger EATB12 Beer Wort Chiller for Hydronic Heating
Product Features:

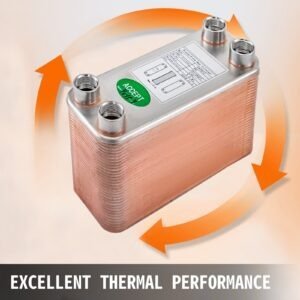

【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6″ x 2.8″ x 6.3″ / 19.4 cm x 7.2 cm x 16.1 cm.
【ENERGY OPTIMIZED】 – This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
【ROBUST CONSTRUCTION】- This 60 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened BSP FPT ports for your easier installation.
【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Specifications
Model: B12-60
Material: 316L +99.9% Copper

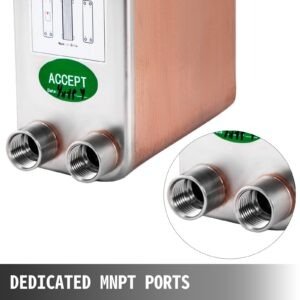

Ports: 1/2″ BSP FPT
Plate Quantity: 60
Design Pressure(Max):3.0 Mpa
Test Pressure:(Min):4.5 Mpa
Design Temp.(℃): Max +225
Design Temp.(℃): Min -196
Dimension: 7.6″ x 2.8″ x 6.3″ / 19.4 cm x 7.2 cm x 16.1 cm
