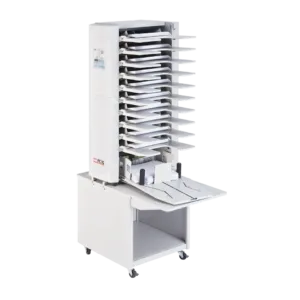

MBM FC10 Plus Automatic Collator

MBM FC10 Plus Automatic Collator

Description

• Automatic 10-bin friction collator.
• Collates variety of paper stocks and weights at speeds up to 3,600 sets per hour.
• 275 sheet bin capacity*.

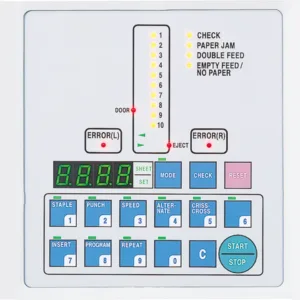

• Touch-button control panel with LED 4 digit counter simplifies set-up and operation*.
• Programming modes include preset batch, insertion, and an alternate bin mode for continuous production.

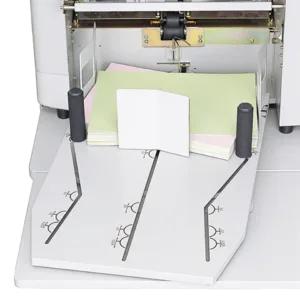

• Adjustable stacking table for straight or criss-cross stacking.
• Self-centering feed guides eliminate the need to reposition on-line bookletmakers for different size stock.
• Adjustable feed and separator pressures on each bin.
• Bin empty sensor.

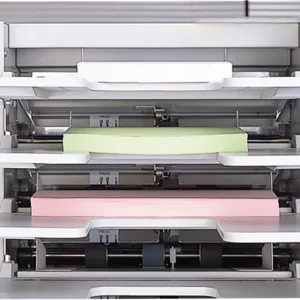

• Extra-large, detachable feed trays.
• Optional base with casters and corner stapler, UL and C UL approved.

Features

MBM FC10 Plus Automatic Collator

Paper Size: 3 3/4″ x 5 7/8″ to 12 7/8″ x 18 1/2″
Paper Weight: 20 to 100 lbs.
Speed: 3,600 sets/hr.*
Number of Bins: 10

Product Details

Electrical Requirements: 110 V. 60 Hz.
Dimensions (D x W x H): 21″ x 28″ x 41 1/4″ (34″ W, 63″ H with base)
Shipping Weight: 231 lbs. (281 with base)

* may vary due to variations in paper and power supply.

Warranty

1-year limited warranty, excluding wearables.
