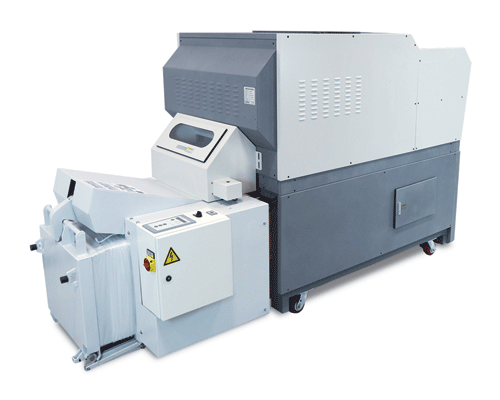

FORMAX FD 8906B Industrial Shredder
Description
The Formax FD 8906B Industrial Shredder and Baler is a high-capacity conveyor-fed unit designed for large volume shredding in a central location and offers fully-automated features including Auto Start/Stop, Auto Reverse and Auto Cleaning for ease of use.
The FD 8906B combines the power and features of the FD 8906CC with an Output Baler for convenient disposal of shredded material.
The Baler continually compacts shredded material into a bale, which is then ejected into a plastic bag for easy disposal.
The FD 8906B can shred stacks of computer forms, cardboard, tapes, ribbons, CDs, magnetic disks, and entire files up to 650 sheets, at a speed of up to 35 fpm.
Standard features include an LED Control Panel with load indicator, heat-treated solid-steel cutting blades, a powerful AC geared-motor, and a variety of safety features.
Shredding blades can also be customized to meet your specific needs.
The standard EvenFlow™ automatic oiling system with 25 heavy-duty copper nozzles lubricates the cutting blades, helping to keep the FD 8906B in peak operating condition.
Features
High-capacity
Baler compacts shredded material
Up to 650 sheets at once
LED Control Panel
Shreds entire files & more
Automatic Oiling System
Belt-feed industrial shredding system
LED control panel
High-capacity output baler
Auto start/stop
EvenFlow™ automatic oiling system
Heat-treated solid-steel cutters
Chain-driven AC geared motor
Auto reverse and cleaning
Customizable shredding blades
Baler full sensor
Large safety bar and safety key lock
Thermal overload protection
Safety circuit breakers
WARRANTY
Cutting head: Lifetime limited warranty
All other parts: 1 year warranty
Specifications
Cutting Style Cross Cut*
Shred Size 5/16” x 1-1/2” – 3” (8 x 38 – 76mm)
Sheet Capacity (70gsm) Up to 650 sheets**
Speed Up to 35 fpm (10m)
Feed Opening 21” (53cm)
Dimensions 47” W x 129” L x 63” H (119 x 327 x 160cm)
Bale Capacity 154 gal. compressed bale size
Weight 3,495 lbs (1585kg)
Baler Pressing Power 80.8 kN
Bale Size 31” W x 22” L x 19”H (78 x 56 x 48cm)
Bale Weight 110-154 lbs. (material dependent)
Delivery Requirements Customer-supplied fork lift is
required for installation
Security Level P-3
Power Supply 3-phase 220V, 60Hz, 50A
dedicated line required
NEMA CS8366 plug included
CS8369 receptacle required
