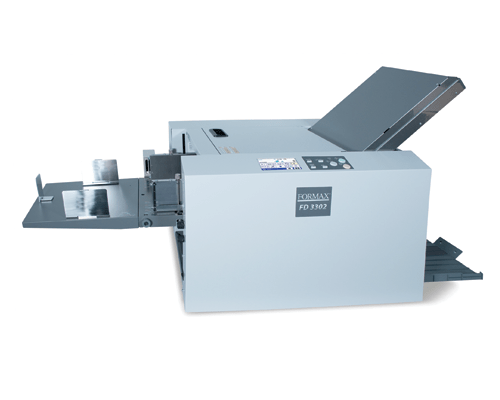

FORMAX FD 3302 Air Suction Folder

Description

The FD 3302 Air-Suction Document Folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock.
The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems.
The FD 3302 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint.
The feeding system also includes a side air system for enhanced feeding of heavier stocks and larger sheets of paper.

With a speed of up to 18,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications, all at the touch of a button, while optical and ultrasonic double feed detection ensures document integrity.

It’s designed to handle a variety of paper weights and sizes, up to 25.5” long, combining an extended infeed tray with variable fan speed and air flow that can be adjusted independently using the interactive control panel and external adjustment knobs.

User-friendly features include automatic paper size detection and fold plate settings, a 4.3” color touchscreen LCD control panel, six programmed fold settings, and the ability to store up to 30 custom folds.
The FD 3302 includes a cross folding guide, a four-digit counter with batch counting capability, four fold rollers for accuracy, and a variety of document security features.

Fully automated and insulated for quiet operation, the FD 3302 is ideal for on-demand printing in the office environment.

Features

Air suction technology
Extended infeed tray
Handles sheets up to 25.5″ L
Folds up to 18,600/hour
Fully automated
Compact and quiet

Air-suction feed system
Color touchscreen control panel
Extended infeed for sheets up to 25.5” long
Automatic paper size detection
Side air system
Adjustable air flow
Double feed detection
Outfeed stacker automatically adjusts
Batch counting
Pre-programmed with 6 standard folds
Up to 30 custom folds
Noise reduction
Built-in DC fans for quiet operation
Four-digit counter
Adjustable stack height lever
Four fold rollers
Fault detection features
Easy access to paper path

Product Details

The FD 3302 Air-Suction Document Folder offers high performance folding in a compact tabletop unit.
The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems.
With a speed of up to 18,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications, all at the touch of a button.
It’s designed to handle a variety of paper weights and sizes, up to 25.5” long.
User friendly features include automatic paper size detection and fold plate settings, a color touchscreen control panel, a four-digit counter with batch counting, six programmed fold settings, and the ability to store up to 30 custom folds.

Specifications

Speed Up to 18,600 sheets/hour (11”, single fold) Five speed levels
Infeed Capacity Up to 1.96” high, 625 sheets (64gsm)
Pre-Set Folds C, Z, Half, Fold Out, Double Parallel,
Gate, Custom, Cross Fold created by
feeding through a second time
Custom Folds Up to 30
Paper Sizes 4.73” x 7.2” up to 12.2” x 25.5”
(120 x 183mm up to 310 x 648mm)
Paper Weight Uncoated: 52.3 – 157gsm (14 – 40#)
Coated: 73.3 – 157gsm (19 – 40#)
Maximum: up to 230gsm (single fold)*
Feed Type Air suction belt
Double Feed Detection Optical and ultrasonic sensors
Dimensions 53.3” L x 23.2” D x 24.2” H
(1354 x 589 x 615mm)
Weight 157 lbs (71kg)
Power 110V-240, 50/60 Hz
