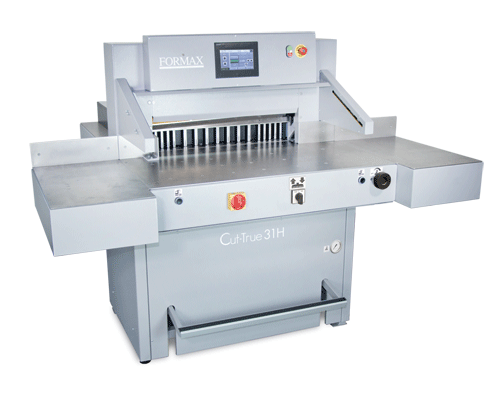

FORMAX Cut-True 31H Hydraulic Guillotine Cutter

Description

The Formax Cut-True 31H Hydraulic Guillotine Paper Cutter features a hydraulic blade and clamp drive for true two-shift operation, and rugged heavy-duty construction for precision cutting of paper stacks up to 28” wide and up to 4” high.
User-friendly features include a color touchscreen control panel, automatically-adjusting back gauge, an internal light to illuminate the cutting area, and the capacity to program up to 100 jobs/100 cuts.

Operation is simple using the color touchscreen for programming and selecting jobs.
The foot-pedal pre-clamp and bright LED Cutting Line work together allowing operators to see exactly where the blade will cut and to make fine adjustments.
Electronically-controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts, every time. Cutting accuracy is 0.1mm on maximum paper stacks.
The electronic back gauge switch allows users to fine tune the position for accurate cuts.

The Cut-True 31H features an anti-friction ball deck with air-assist and extra-large side tables, making it easier for operators to maneuver large paper stock.
The hydraulic clamp pressure is easily adjusted using the pressure gauge knob, to provide the best clamp possible for different paper weights and stack heights.
A removable false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books.
It can be easily removed to decrease the minimum cut length to 1.18”, and stored within the machine when not in use.

Standard safety features include dual-button operation and an infrared safety curtain which immediately stops operation if the light plane is interrupted.
The Cut-True 31H also includes a lock with key, blade lock, automatic blade return from any position, a blade change safety tool, and a wooden paper push for safe alignment.

The Cut-True 31H is ideal for transforming large sheets into brochures, invitations, business cards, and more, with crisp, accurate cuts, and is a welcome addition to digital print shops and in-plant finishing operations.

Features

7″ Color Touchscreen
Hydraulically controlled
Low-friction air-assist ball deck
Cuts stacks up to 28″ wide
LED cutting line
Infrared Safety Curtain
Up to 100 programmable jobs
Extra large side tables
Designed for true two-shift operation
Hydraulically-controlled clamp and blade
Low-friction air-assist ball deck
Infrared safety curtain
Color touchscreen control panel
LED cutting line
Up to 100 programmable jobs
High-speed hardened steel blade
False clamp for sensitive paper stock
Internal light illuminates cutting area
Extra-large side tables
Electronic fine-tuning switch
Hydraulic pressure gauge knob
Automatic blade return from any position
Foot pedal pre-clamp
Business card cutting mode
Automatic-adjusting back gauge
Solid steel blade carrier
Two-button operation for safety
Blade change safety tool

Specifications

Cutting Action Dual-button hydraulic
Max Cutting Width 28.7” (730mm)
Max Paper Stack Height 3.94” (100mm)
Programmable Jobs Up to 100 jobs with 100 steps
Length Behind Blade 26.5” (673mm)
Length in Front of Blade 25” (635mm)
Min Cut w/False Clamp 2.36” (60mm)
Min Cut w/o False Clamp 1.18” (30mm)
Table Size w/Side Tables 72.75” W x 25.125” D (1848 x 638mm)
Table Size w/o Side Tables 43.12” W x 21.125” D (1095 x 537mm)
Clamp Style Automatic, hydraulic
Hydraulic Clamp Pressure 700-4,500 psi (49 – 316kg/cm2)
Back Gauge Adjustment Electronic back gauge switch
Blade Change Safety Tool Included
Dimensions 73” W x 69” D x 59.9” D
(1857 x 1754 x 1445mm)
Weight 1,323 lbs (600kg)
Power Supply 208V, 60Hz, 30A dedicated line
