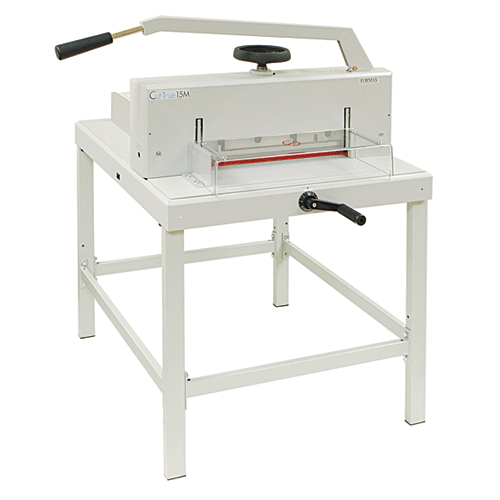

FORMAX Cut-True 15M Manual Guillotine Cutter
Description
The Cut-True 15M Manual Paper Cutter features a hardened steel blade to easily slice through paper stacks up to 2.36” high.
Its Guillotine blade and LED Laser Line combine to offer precision cutting with minimal effort.
Simply load a stack of paper, up to 16.9” wide, secure with the geared clamp, and pull down on the lever arm; it’s that easy.
Using the spindle-guided back gauge and calibrated scales, operators can make fine adjustments, while the Laser Line shows exactly where to cut.
In addition to accuracy, the Cut-True 15M has a range of safety features including front and rear transparent covers, blade lock, external blade depth adjustment, easy blade change access from the front of the cutter, and a wooden paper push for safe alignment.
This compact model also includes a rugged metal stand and feet for tabletop use.
The Cut-True 15M is ideal for transforming brochures, invitations and more, with crisp, accurate cuts.
Features
Quick and accurate
Cuts stacks up to 2.36″ H
LED cutting line
Various safety features
High-Quality hardened steel blade
Cuts paper stacks up to 2.15” high and 16.9” wide
LED laser cut line
Front and rear safety covers
Manual lever cutting arm
Geared clamping system
Spindle-guided back gauge crank
Calibrated scale for fine adjustment in inches and metric
Common paper sizes clearly marked
Solid steel blade carrier
Wooden paper push for safe alignment
All-metal stand and tabletop feet included
Blade depth adjustment from outside machine
Easy blade change access from front
Blade change safety tool included
Specifications
Cutting Action Manual lever handle
Maximum Cutting Width 16.9” (430mm)
Maximum Paper Stack Height 2.15” (55mm)
Length Behind Blade 17” (432mm)
Length in Front of Blade 8.25” (210mm)
Narrow Cut 1.38” (35mm)
Table Size 24.6” W x 27.5” D (625 x 700mm)
LED Laser Cut Line Yes
Clamp Style Spindle-guided clamping wheel
Back Gauge Adjustment Manual crank
Back Gauge Reading Scale, in inches and metric
Blade Change Safety Tool Included
Dimensions 42.5” H x 26.8” W x 29.1” D
(1080 x 680 x 740mm)
Weight 133 lbs. (60kg)
Safety Certifications CE approved
