Reliable top friction feed system.

Simple programming allows you to crease, number or perforate individually.

User-friendly touch screen for easy set up and control of the machine.

Includes micro-laterally adjustable feed rails and sheet counter (batch and total counting).

Creasing

CAM actuated compression creasing.

Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.

Accommodates inline folders like the KF-200.

Automated distance recognition–allows auto setups for your most common creases and corresponding folds.

Perf/Scoring

Complete perforating assembly included, with linear perf capabilities up to 4 perfs per sheet.

Optional micro-perf and score wheel assemblies are available.

Numbering

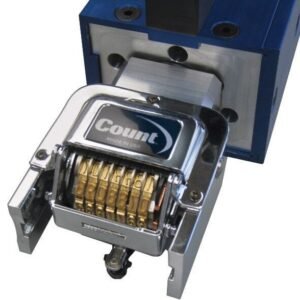

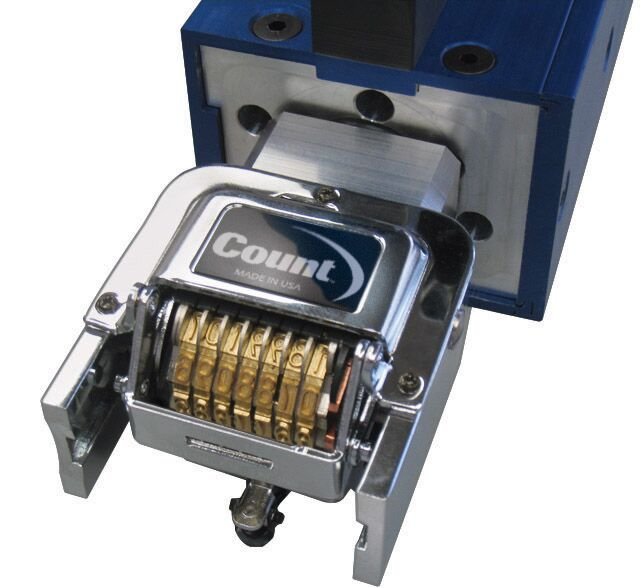

Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros and 4 repeats.

Flexibility to apply numbers virtually anywhere on a sheet–from lead edge, place numbers within 1 mm of previous number.

Number single sheets, or crash number up to a 10-part carbonless form.

External air compressor is required for numbering.
(Compressor not included.)

Programmed Fold Types:

Half

Tri-Fold

Z-Fold

Letter Fold

Roll Fold

Gate Fold

Double Gate Fold

Double Parallel Fold

Perfect Bind – No Hinge

2- Perfect Bind – Single Hinge

Perfect Bind – Double Hinge

Specifications
